Description

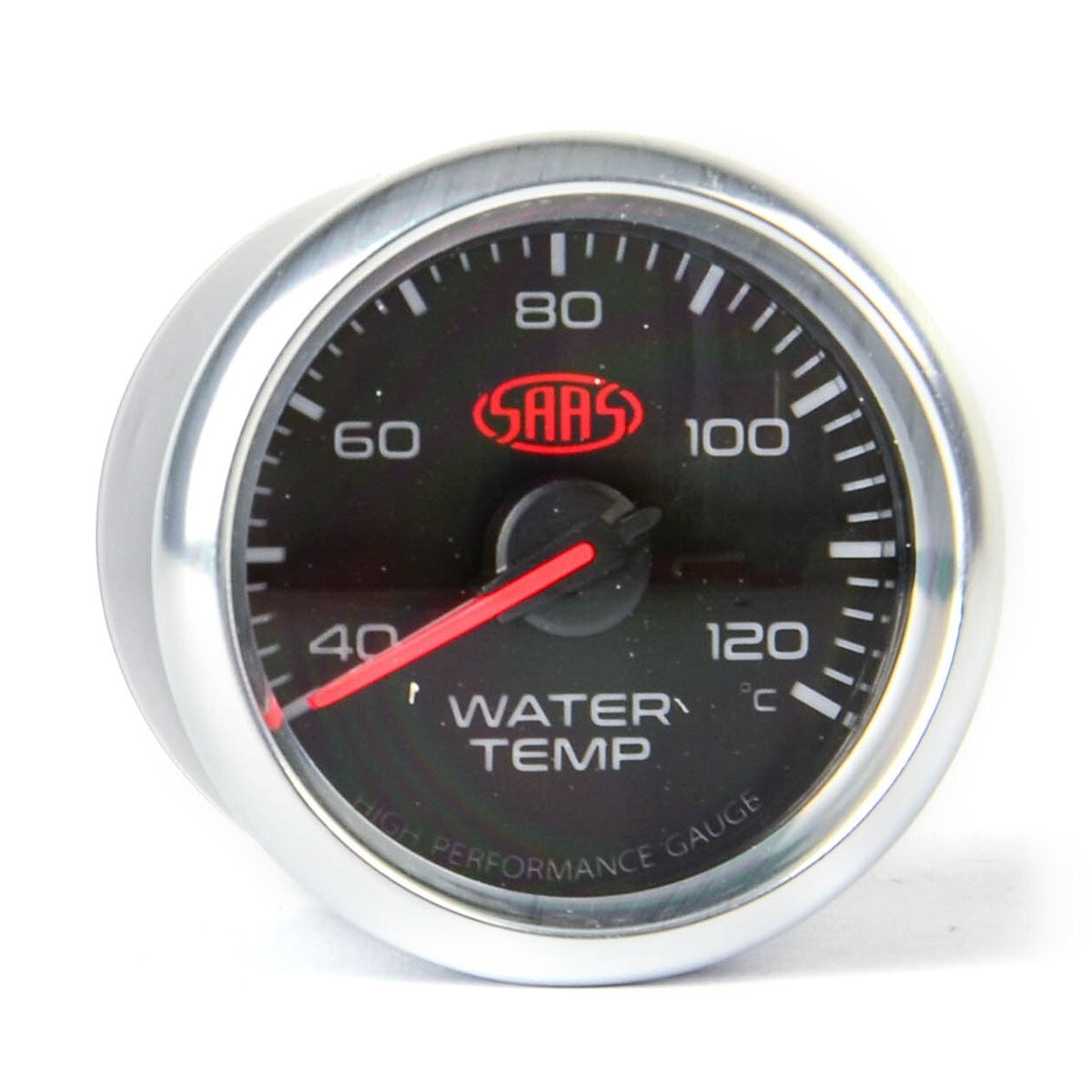

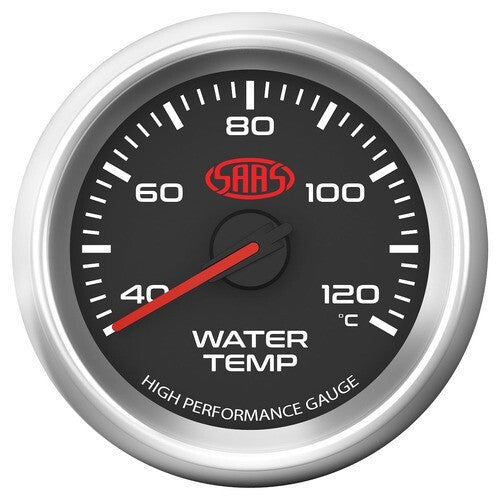

SG32220 Water Temp Gauge 40°-120° 52mm Black Muscle Series 3
This water temperature gauge is ideal for checking on your engine cooling system and helps keep on eye out for any potential issues.
FEATURES:
- Gauge Diameter: 52mm/2"
- Gauge Operating Range: 40°-120°
- Polished Bezel Surround
- Rear set colour change button

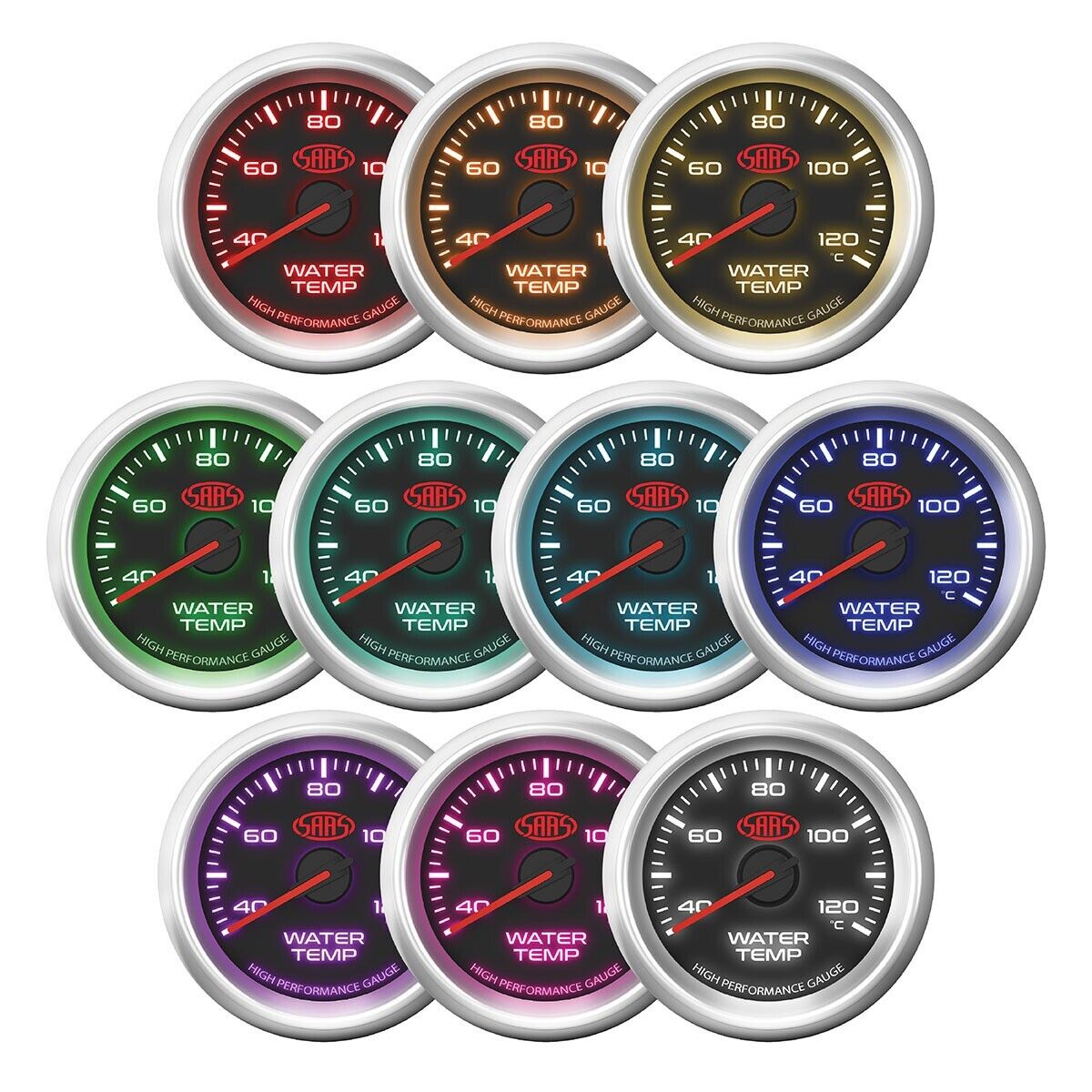

- 10 Colour Backlight options: Red, Red amber, Orange, Green, Aqua, Cyan, Blue, Purple, Pink & White

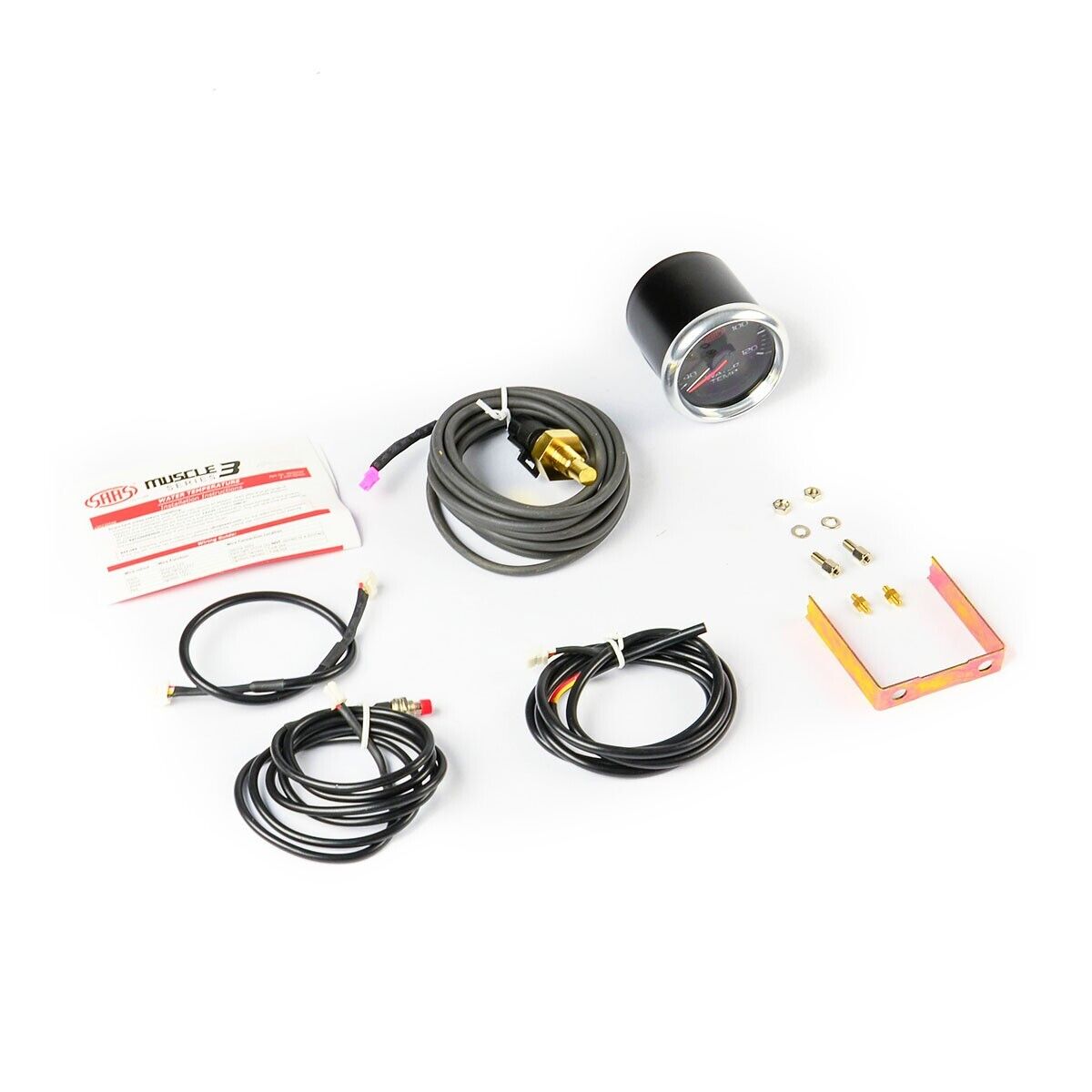

- Includes all mounting hardware, bracket and sender
- 5 levels day / night dimming function
- User pre-set warning functions
- Advanced stepper motor technology
The sender can be mounted directly into an available water temp port (for example, inlet manifold), piggy backed off the OE sender/switch using a brass T-Adaptor or most commonly, into a top radiator hose inline t-piece. Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.
