SSH4402 - SAAS Silicone Intercooler Cold Pipe 2nd / Middle Stage For Nissan Navara D40 Pathfinder R51 V9X V6 01/2010-On
The SAAS SSH4402 Intercooler hose is an upgrade pipe to the OE rubber hose on Spanish built D40 Navara and R51 Pathfinder having a VIN starting with VSK.

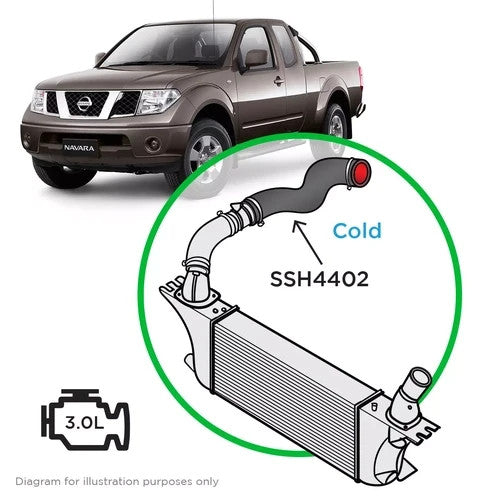

These have the V9X V6 diesel engine and are a POST 01/2010 build. It replaces the hose that connects between the intercooler and throttle body (middle section) and is the second stage of the 3 hoses that form the cold side intercooler to throttle body assembly.
Designed to replace the factory cold side middle hose pipe - 144635X21B - with an upgraded flurosilicone coated silicone hose. Our multi-ply hose kits are supplied with stainless dual bead hose clamps and provide a secure solution and reduce the possibility of hose failure. Leaking, swollen or split intercooler hoses can lead to a loss of power and/or ingestion of unfiltered air
FVMQ Oil Resistance: FVMQ Fluorosilicones offer the highest level of oil resistance amongst the most common elastomers and are a popular solution within the aviation industry
Fitting Notes:
SAAS Silicone Intercooler Hoses are designed to be more robust than the OE style of rubber hose. The multi-ply design may require warming to fit over pipe flanges and should be installed with the provided hose clamps to ensure a secure seal.
Features
The SAAS SSH4402 Intercooler hose is an upgrade pipe to the OE rubber hose on Spanish built D40 Navara and R51 Pathfinder having a VIN starting with VSK.
These have the V9X V6 diesel engine and are a POST 01/2010 build. It replaces the hose that connects between the intercooler and throttle body (middle section) and is the second stage of the 3 hoses that form the cold side intercooler to throttle body assembly.
Designed to replace the factory cold side middle hose pipe - 144635X21B - with an upgraded flurosilicone coated silicone hose. Our multi-ply hose kits are supplied with stainless dual bead hose clamps and provide a secure solution and reduce the possibility of hose failure. Leaking, swollen or split intercooler hoses can lead to a loss of power and/or ingestion of unfiltered air
FVMQ Oil Resistance: FVMQ Fluorosilicones offer the highest level of oil resistance amongst the most common elastomers and are a popular solution within the aviation industry
Fitting Notes:
SAAS Silicone Intercooler Hoses are designed to be more robust than the OE style of rubber hose. The multi-ply design may require warming to fit over pipe flanges and should be installed with the provided hose clamps to ensure a secure seal.
Features

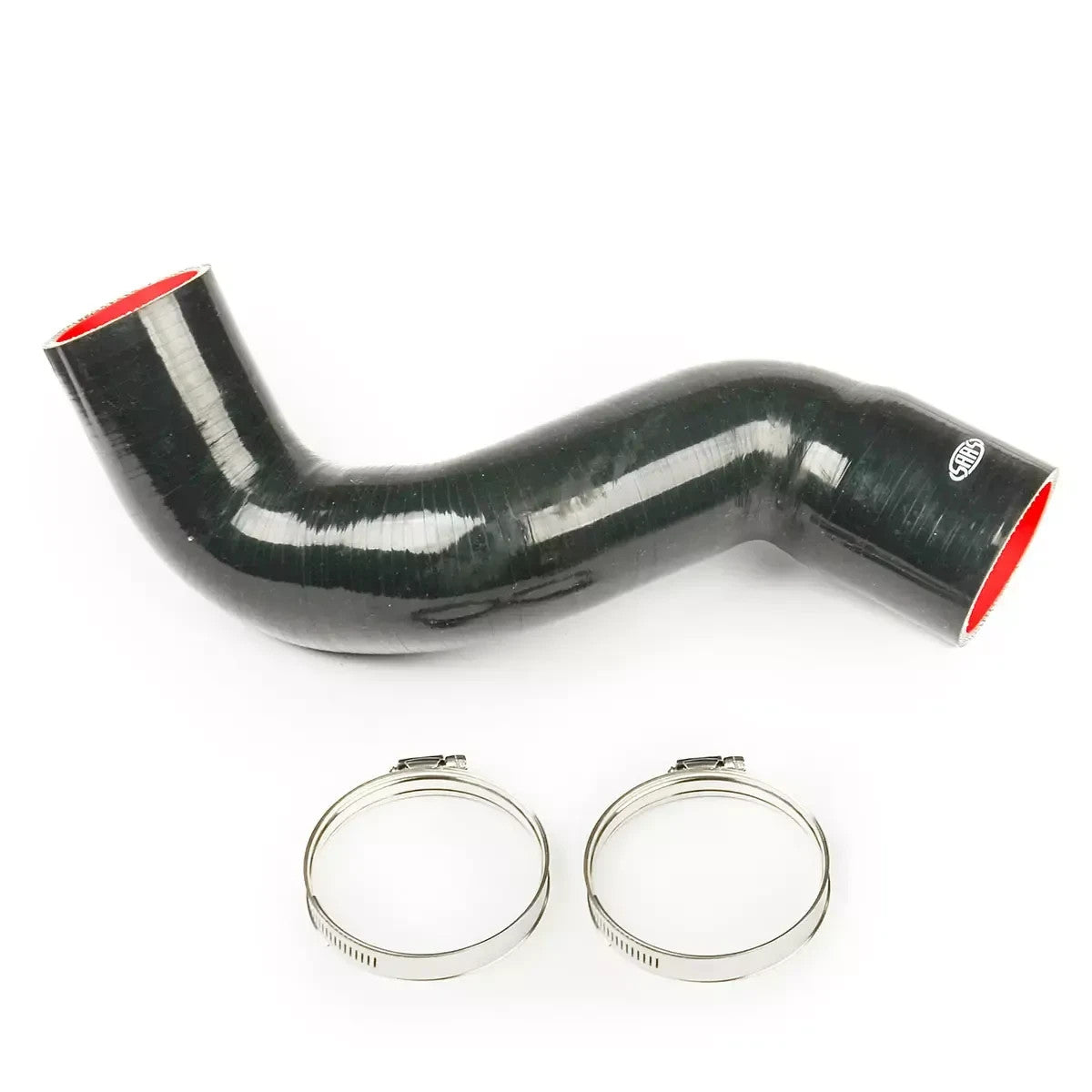

- Smooth Form 5 Ply polyester reinforced silicone moulded to factory shape
- ID 1: 66mm
- ID 2: 59mm

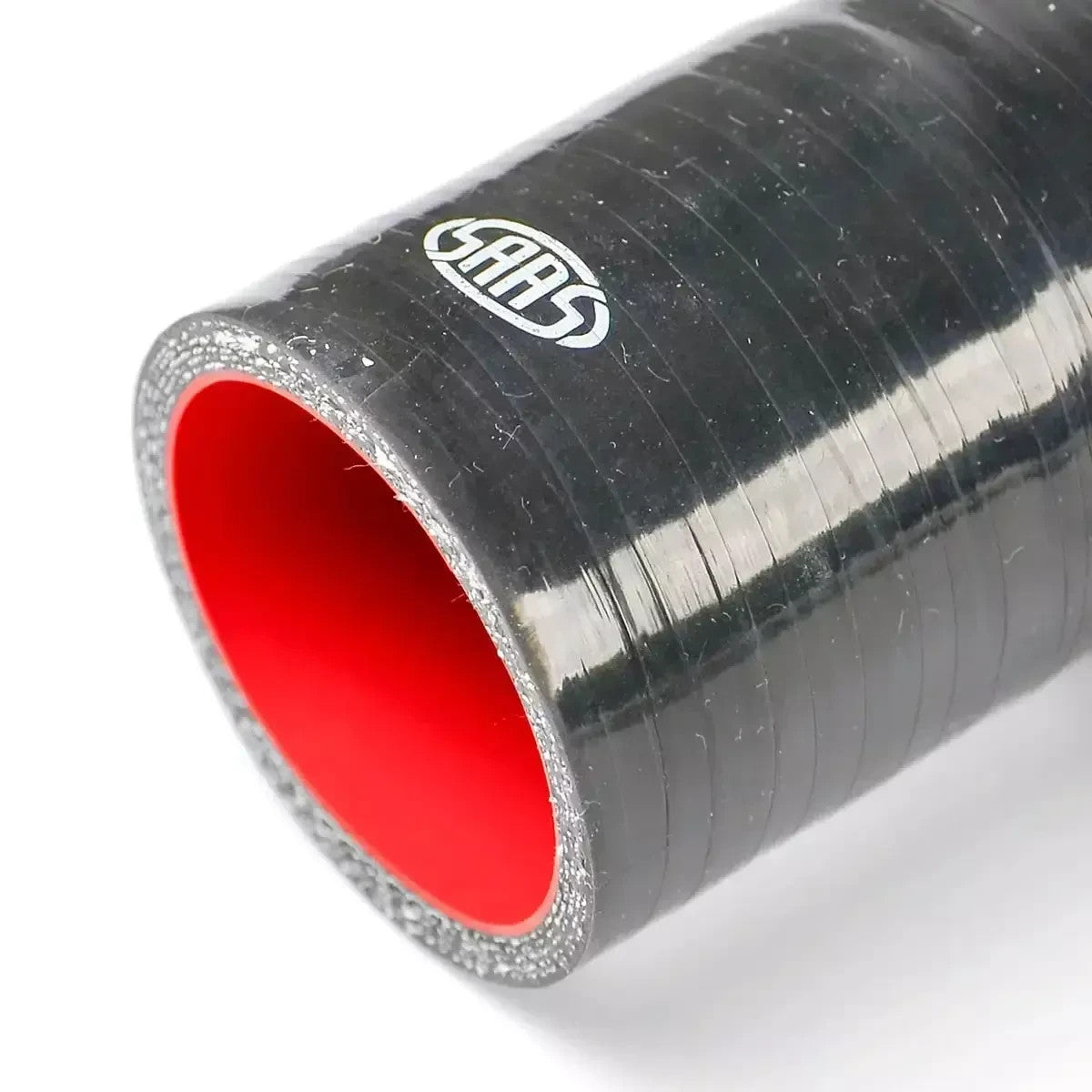

- Red FMVQ Fluorosilicone lining providing greater resistance to oil mist and EGR by-products
- Stable operating temp from -50°C to +200°C
- 4:1 burst pressures at safe working loads
- Black finish to retain that OE look

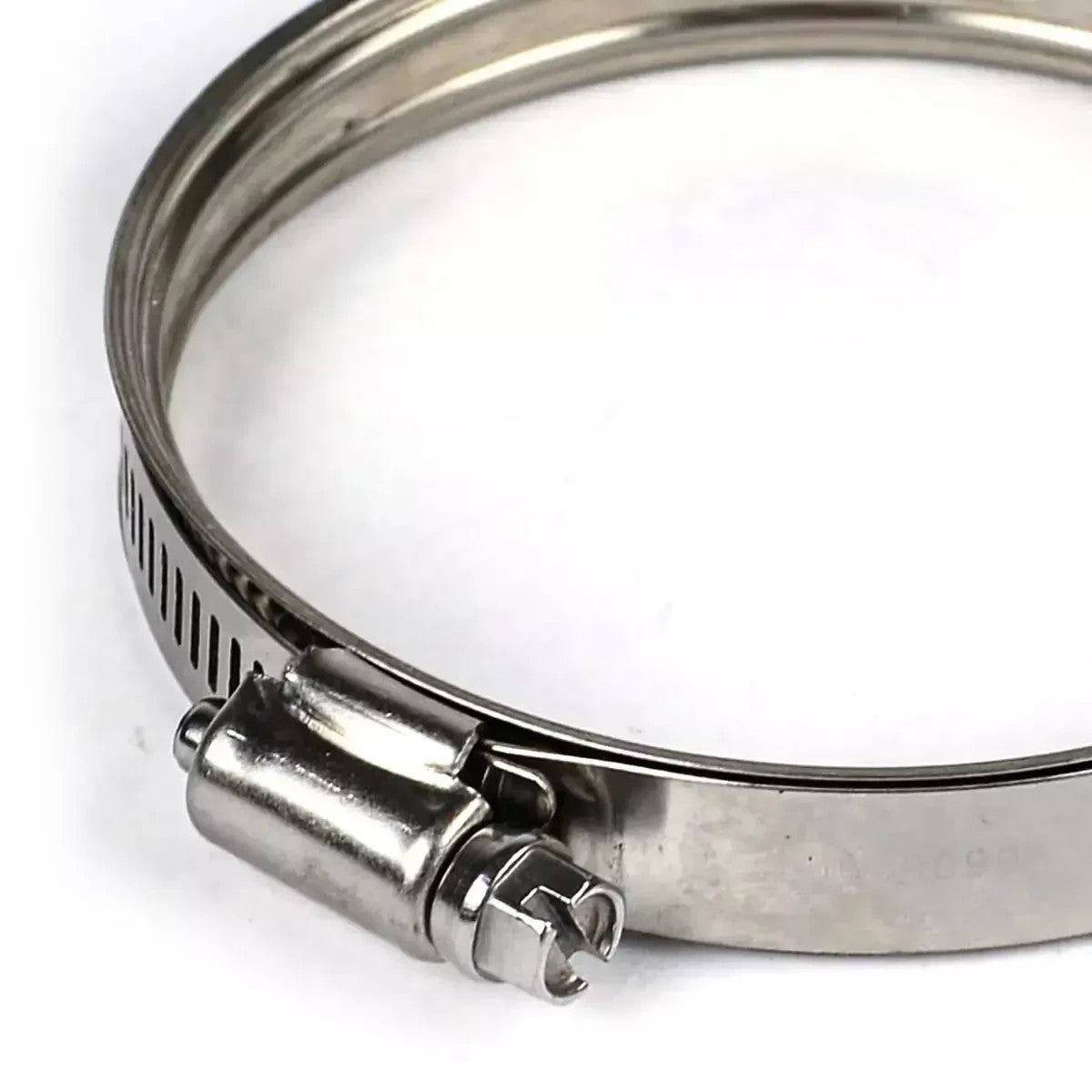

- Stainless Dual Bead Hose Clamps included
Suits:
- Nissan Navara D40 01/2010-On
- Nissan Pathfinder R51 V9X V6 01/2010-On
