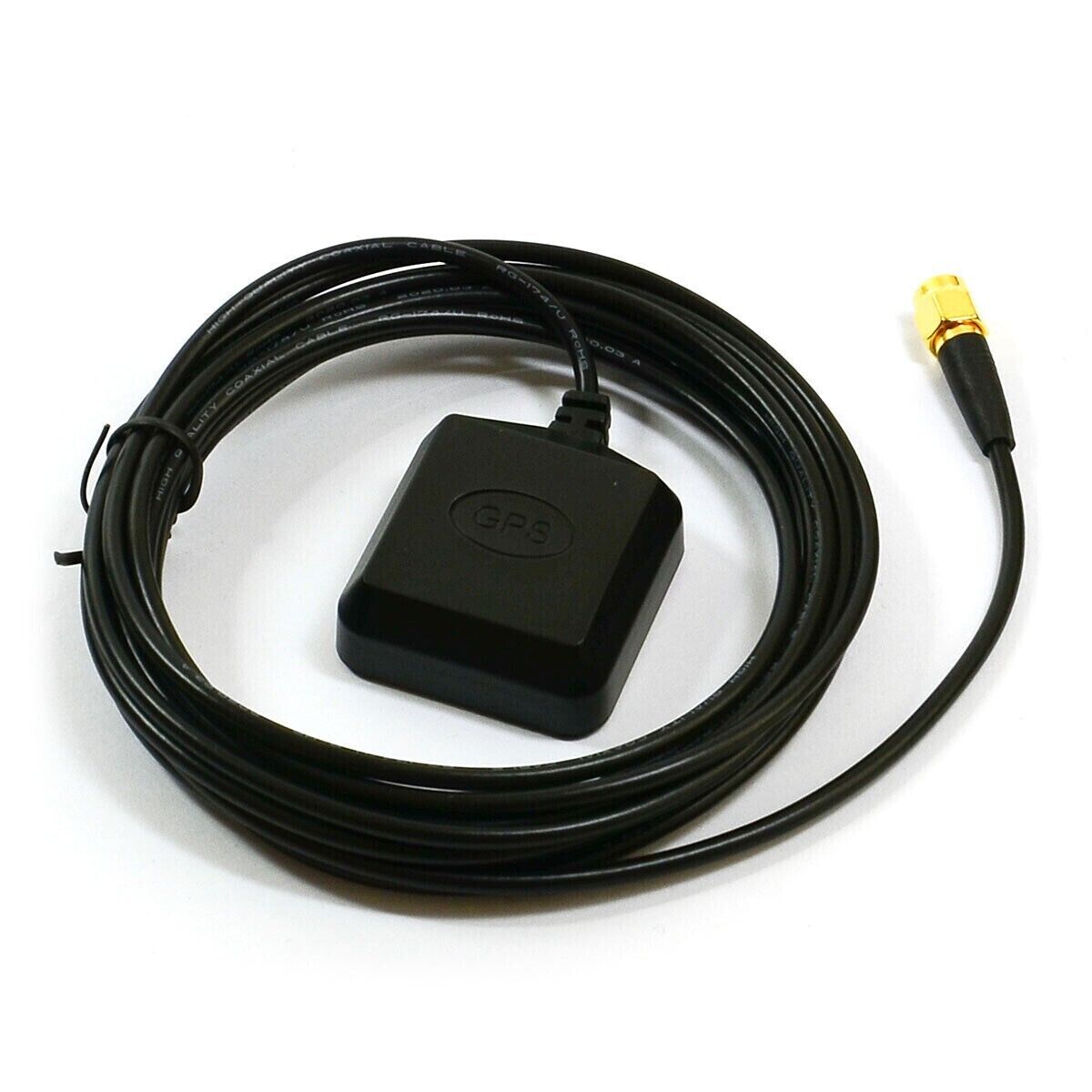

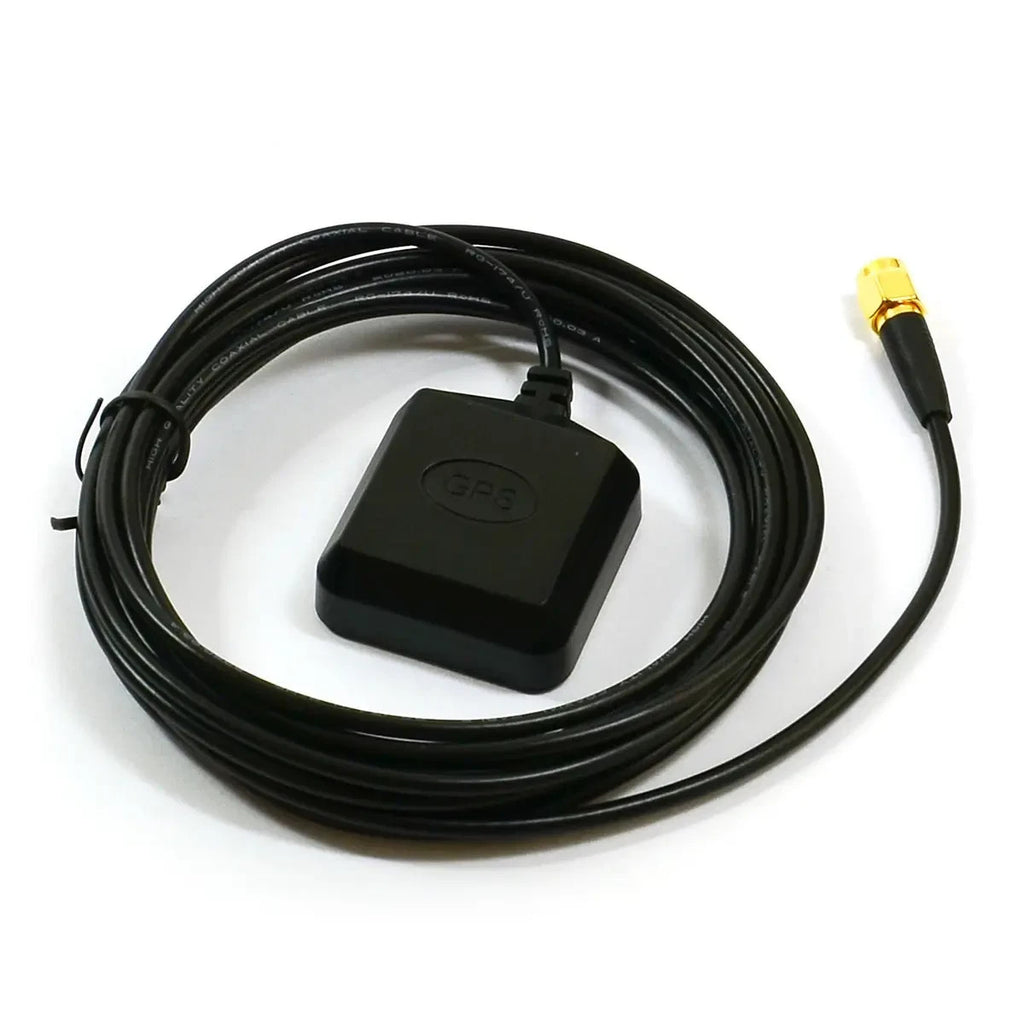

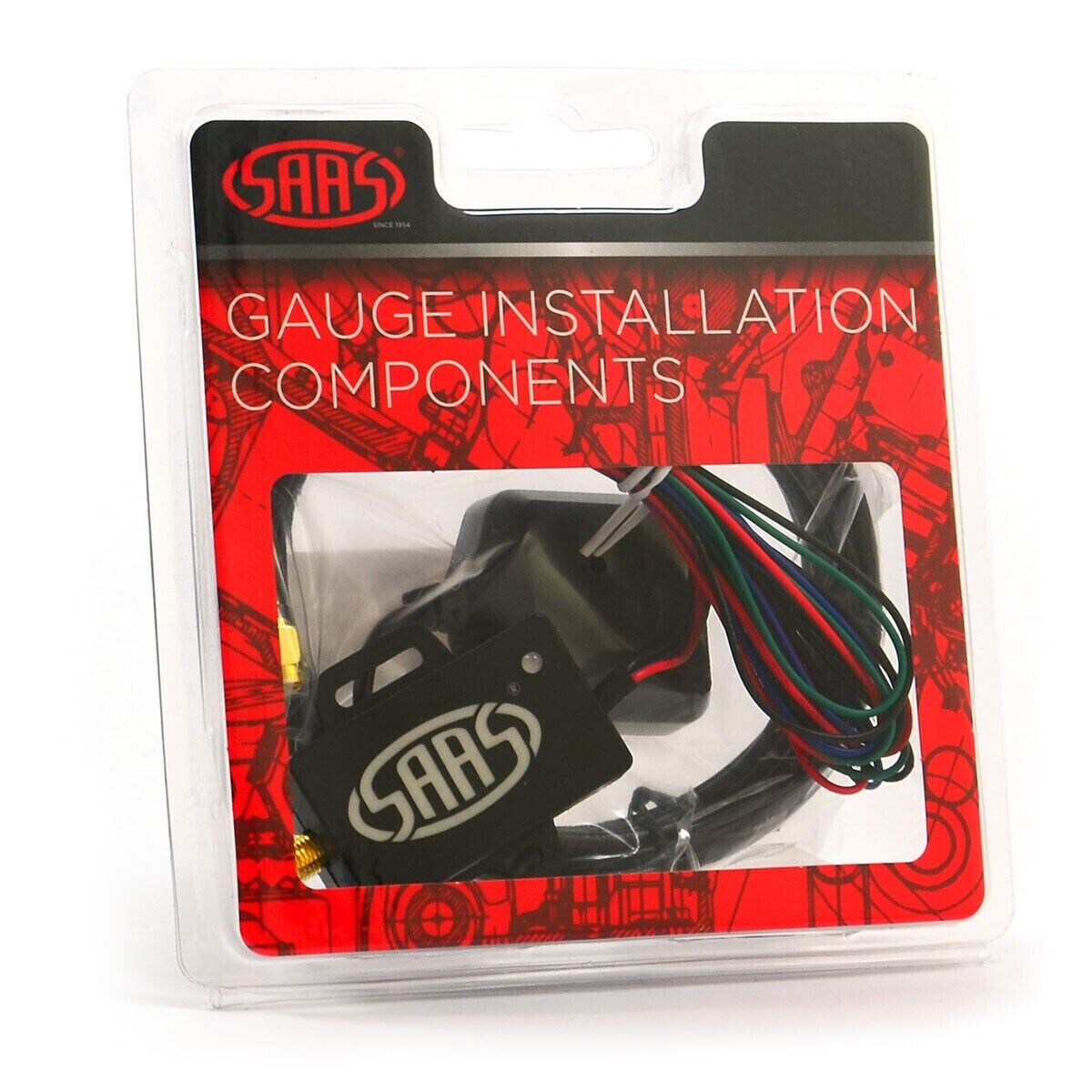

SG31650 Speedometer GPS Sensor and Antenna
The perfect companion to our in-dash electronic Speedometer, our SG31650 Universal GPS Speed Sender can actually mate to any Speedometer, Odometer or Tachograph that requires an accurate speed signal (pulse).
If you have an older vehicle that does not have a Vehicle Speed Sender (sometimes also known as hall effect), then it can be both difficult and expensive to find a suitable solution. The SAAS GPS Sender provides a calibration free unit which uses data received from the Global Positioning Satellite network. It calculates 3 dimensional ground speed and provides a pulsed output with a high degree of accuracy.
FEATURES:
Direct match to our SG31631/SG31632 in-dash speedometers
Super fast and easy install (when mated to SAAS Speedometers)
High Accuracy with 0.2% deviation (cable drive speedos are typically 3-5%)
Velocity < 0.06m/sec (~ 0.22 kph)
Altitude to within 10m
Horizontal to within 5m
Anti GPS Drift technology
Shockproof and circuit protected
Pulse compensation for when driving through tunnels (5000 pulses per km)
Low current draw
Fast satellite acquisition time
First time setup < 60sec
Temporary power loss < 13 sec
Loss of satellite lock < 2sec

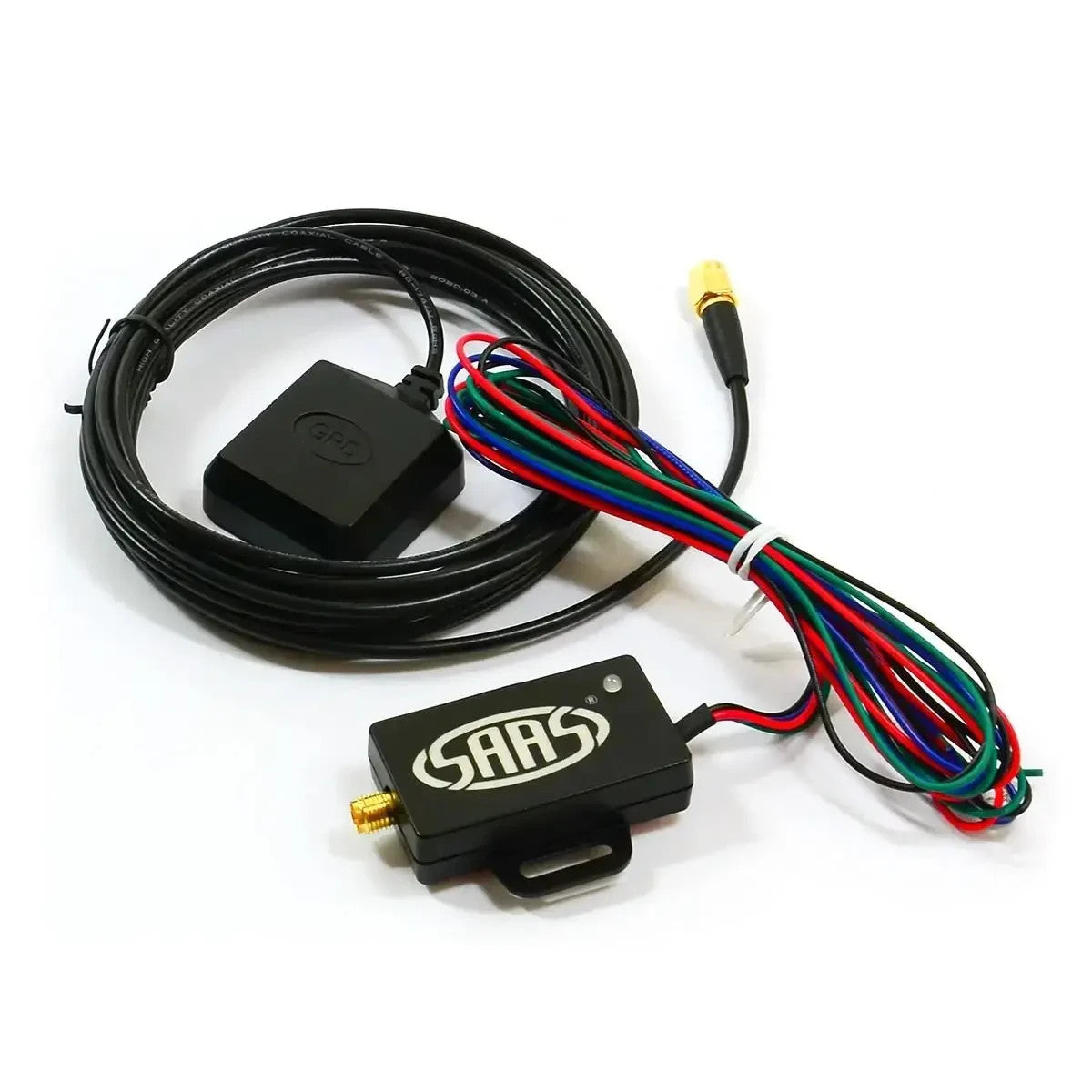

CABLE ASSIGNMENT:
RED: Power + DC8~32V (may require resistor in higher V installs)
BLACK: Ground/Earth
GREEN: Speed Pulse Signal +'ve output
BLUE: Speed Pulse Signal -'ve output
