Description

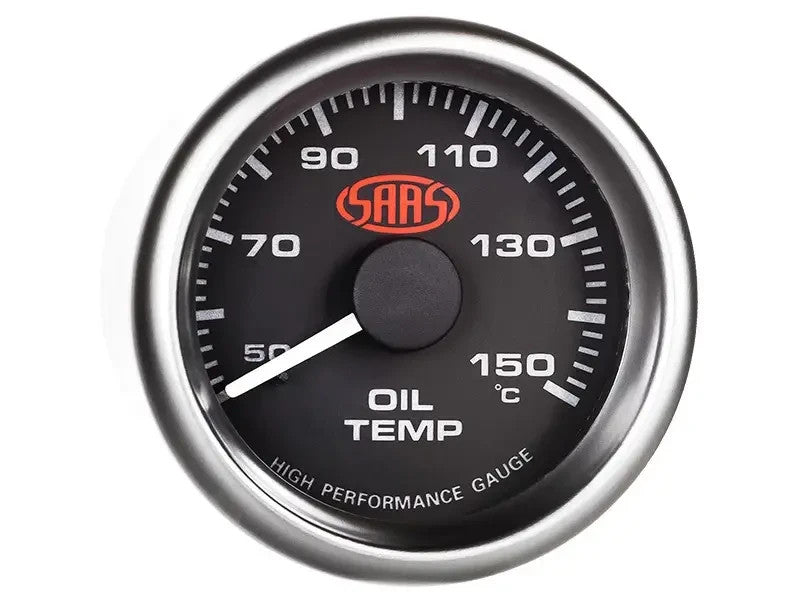

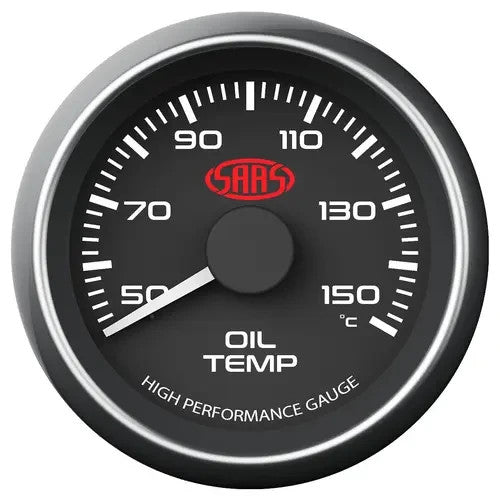

Performance Transmission / Gearbox Oil Temperature Gauge, 52mm Electric Analog
Features:
• Black Dial Face
• Electrical Type
• Ranging from 50 to 150 Degrees

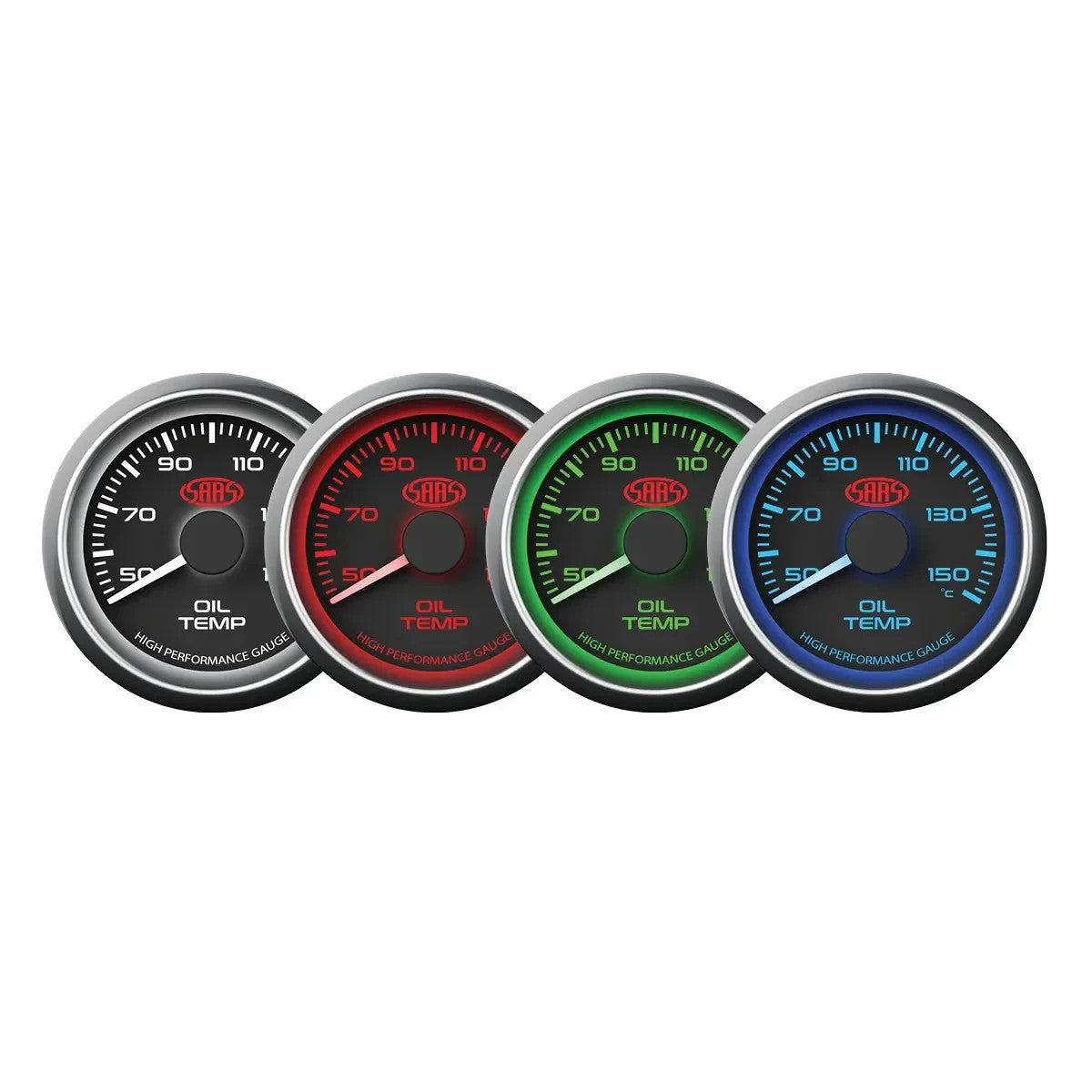

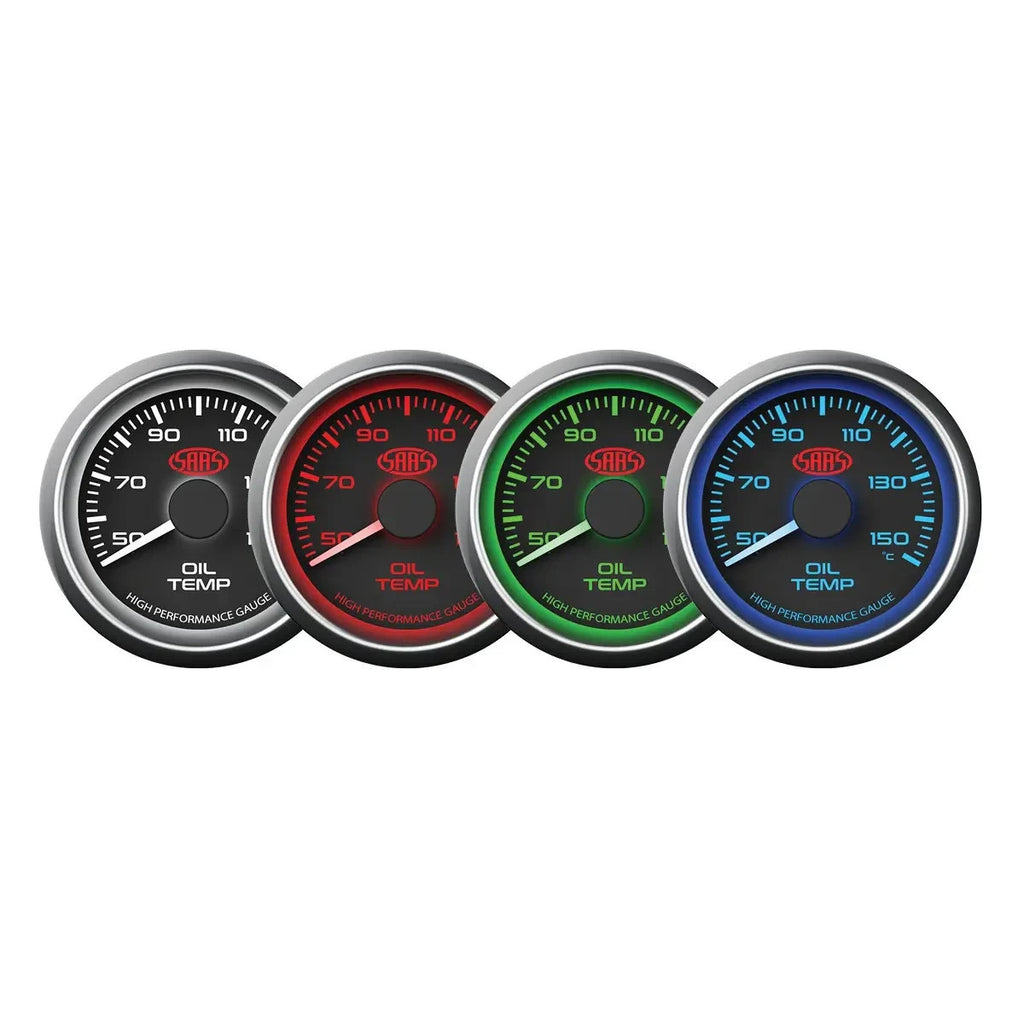

• 4 Colour selectable backlight via button on gauge.
• Includes All Hardware, Senders and Fitting Instructions
Suits:
• 12 Volt Application
• 4,6 & 8 Cylinder Engines
FITMENT NOTES:
The sender is most commonly piggy backed off the OE oil pressure sender/switch using a brass T-Adaptor. Alternatively, consider using a SAAS oil filter sandwich plate listed in our store under models/engines that provides up to 3 sender ports for accessories.
Should the standard sender wire not be long enough, splice in an additional length of wire with a gauge NO GREATER than supplied loom wire. SAAS recommends <= 20AWG wire. Use of a heavier gauge wire or of too greater length will impact resistance and distort temperature readings.
