Description

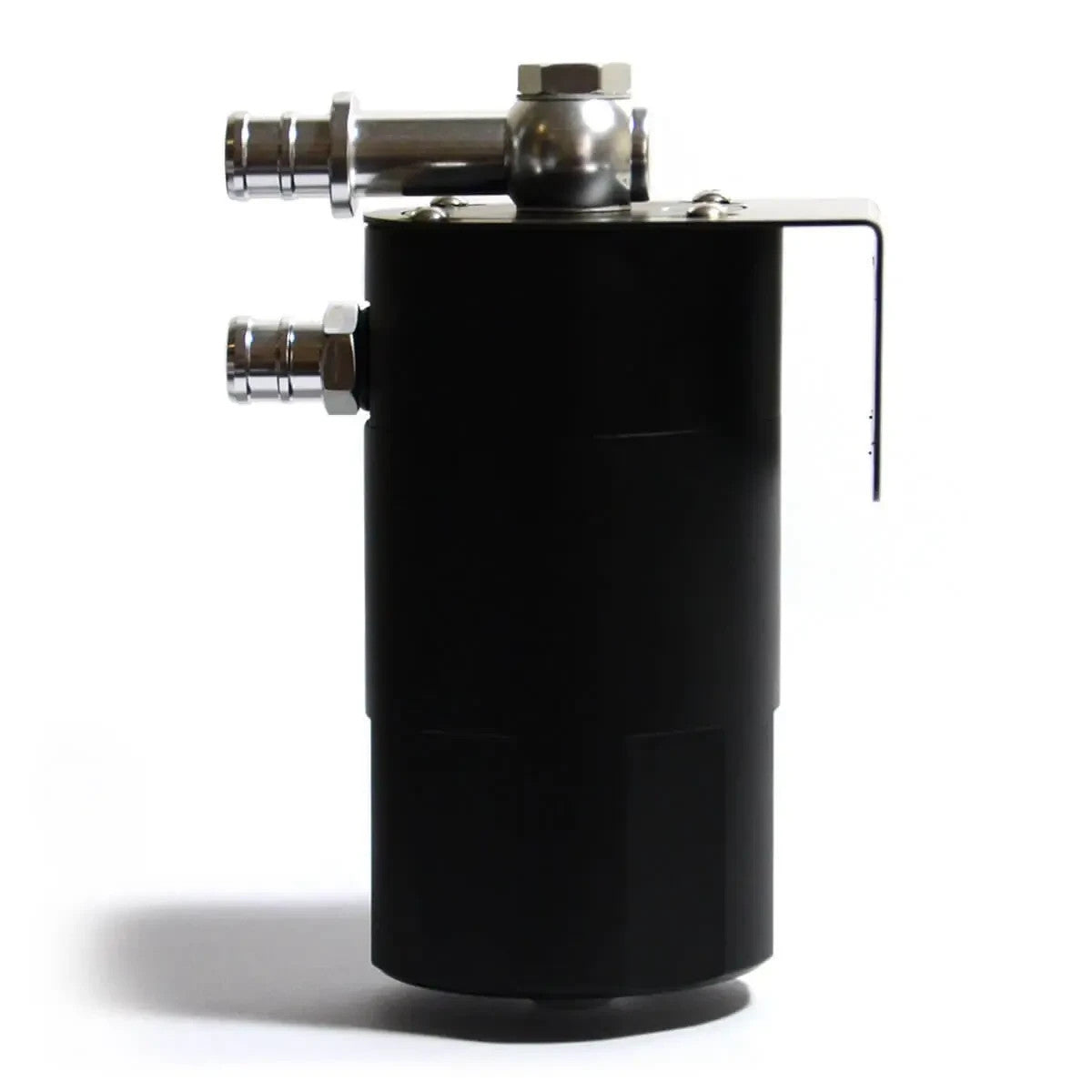

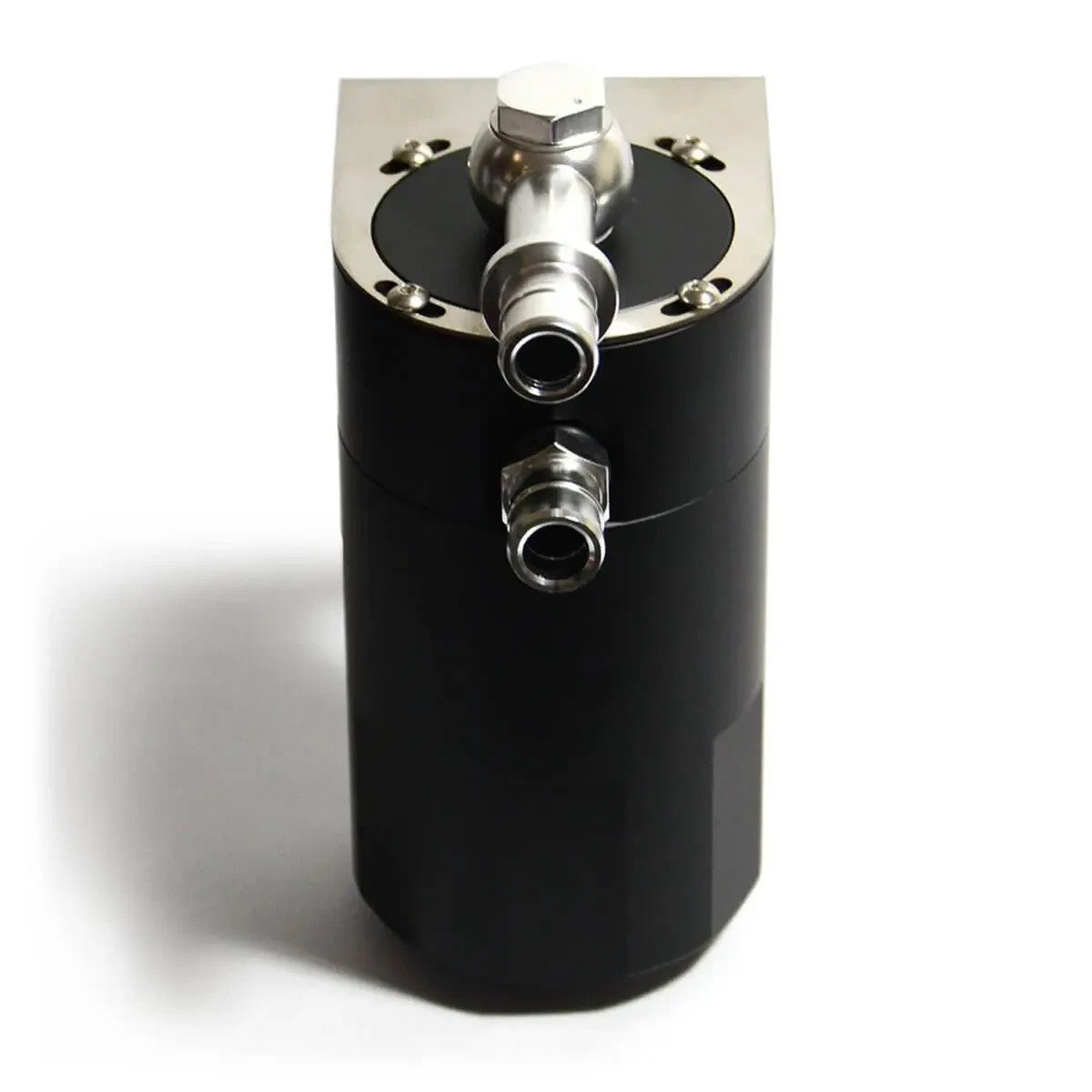

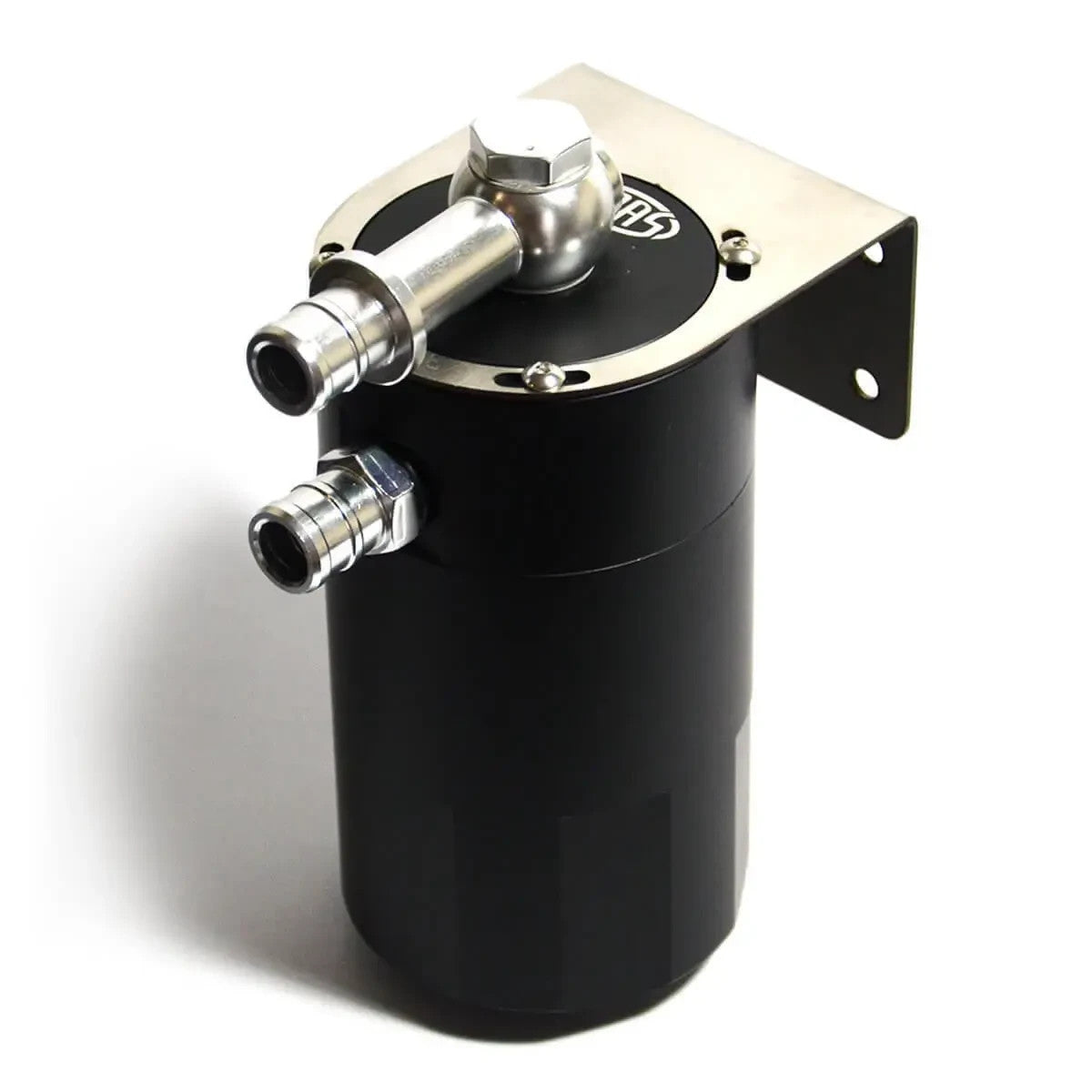

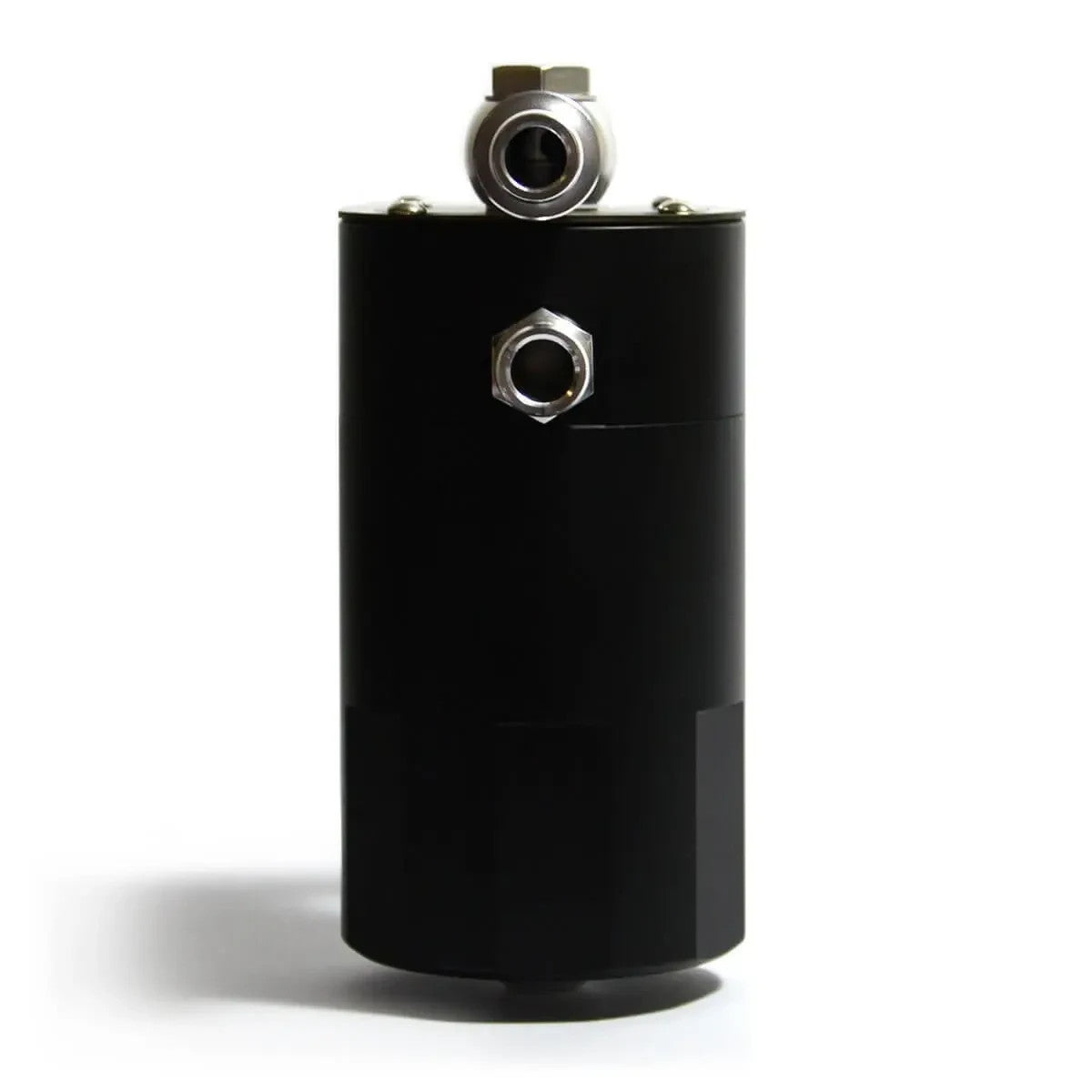

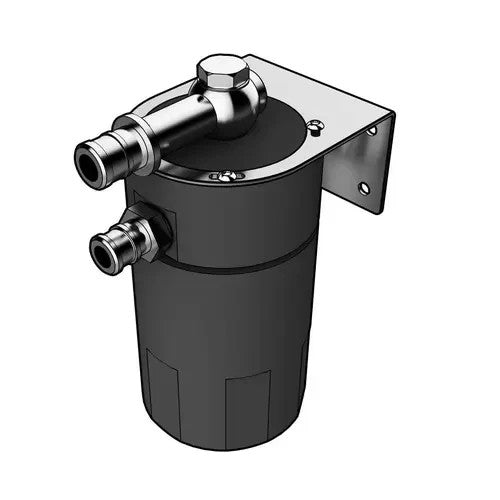

ST1014 Oil Catch Tank Baffled Billet Aluminium Black 500ml capacity
Ideal for 4WD and Performance Vehicle applications
Normally your crankcase (and associated impurities) would be ventilated back through your engine's intake system, usually via a PCV valve. Great for smog laws, not so great for your engine. You run the risk of coating your intake runners, injectors and internals with the residual oil mist discharged from your crankcase.
Now there's a better way to keep your engine's intake system free from the crankcase oil contaminents generated by engine blow-by - with a SAAS fully baffled Oil Catch Can.
Designed for the Australian off-road, the SAAS Billet Oil Catch Can is your engine's best friend.
Tank Dimensions:
Ideal for 4WD and Performance Vehicle applications
Normally your crankcase (and associated impurities) would be ventilated back through your engine's intake system, usually via a PCV valve. Great for smog laws, not so great for your engine. You run the risk of coating your intake runners, injectors and internals with the residual oil mist discharged from your crankcase.
Now there's a better way to keep your engine's intake system free from the crankcase oil contaminents generated by engine blow-by - with a SAAS fully baffled Oil Catch Can.
Designed for the Australian off-road, the SAAS Billet Oil Catch Can is your engine's best friend.
Tank Dimensions:
- Tank overall length ~ 180mm (excluding drain cock fittings)
- Tank Diameter ~ 80mm (excluding outlet barbs)
- Machined billet T6061 Aluminium

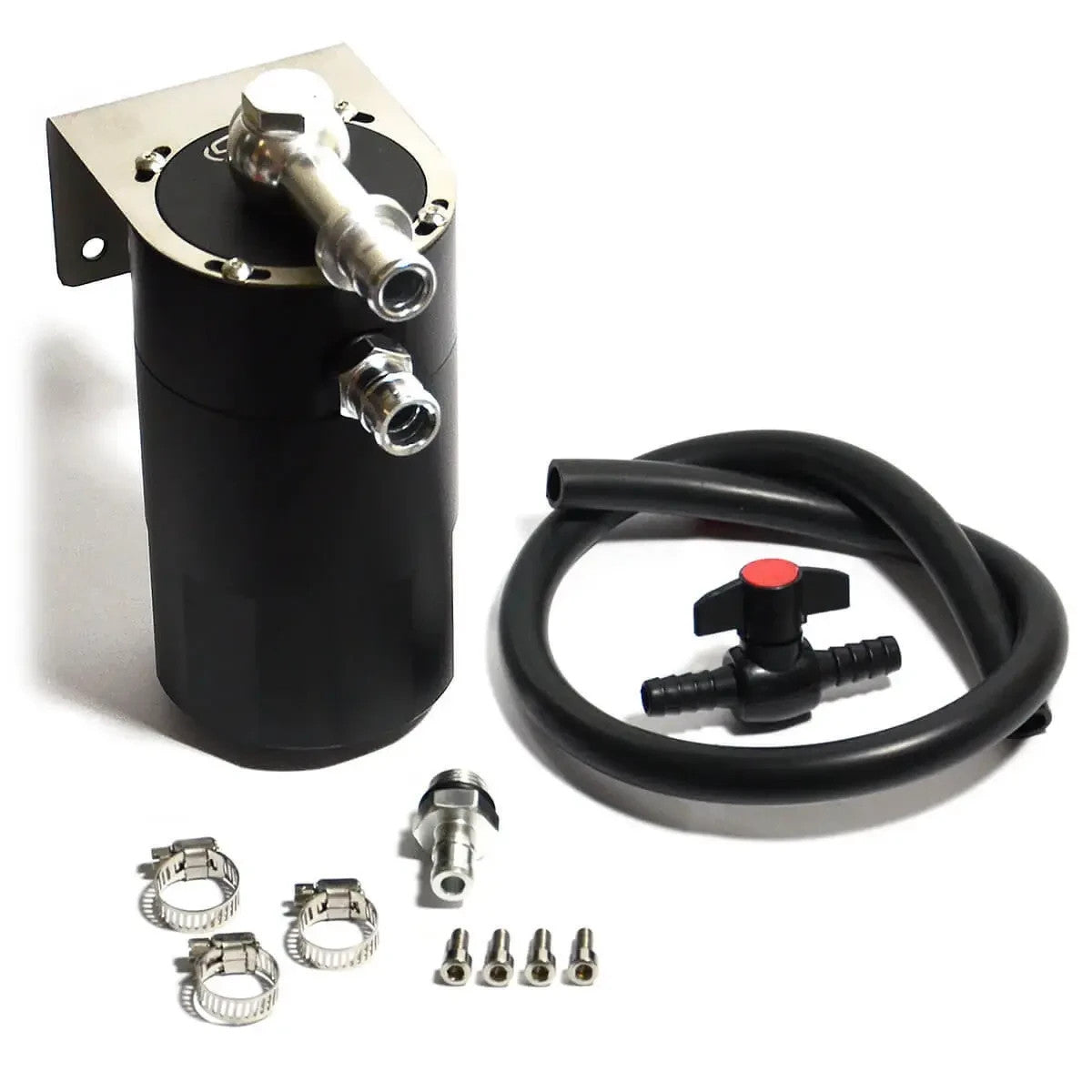

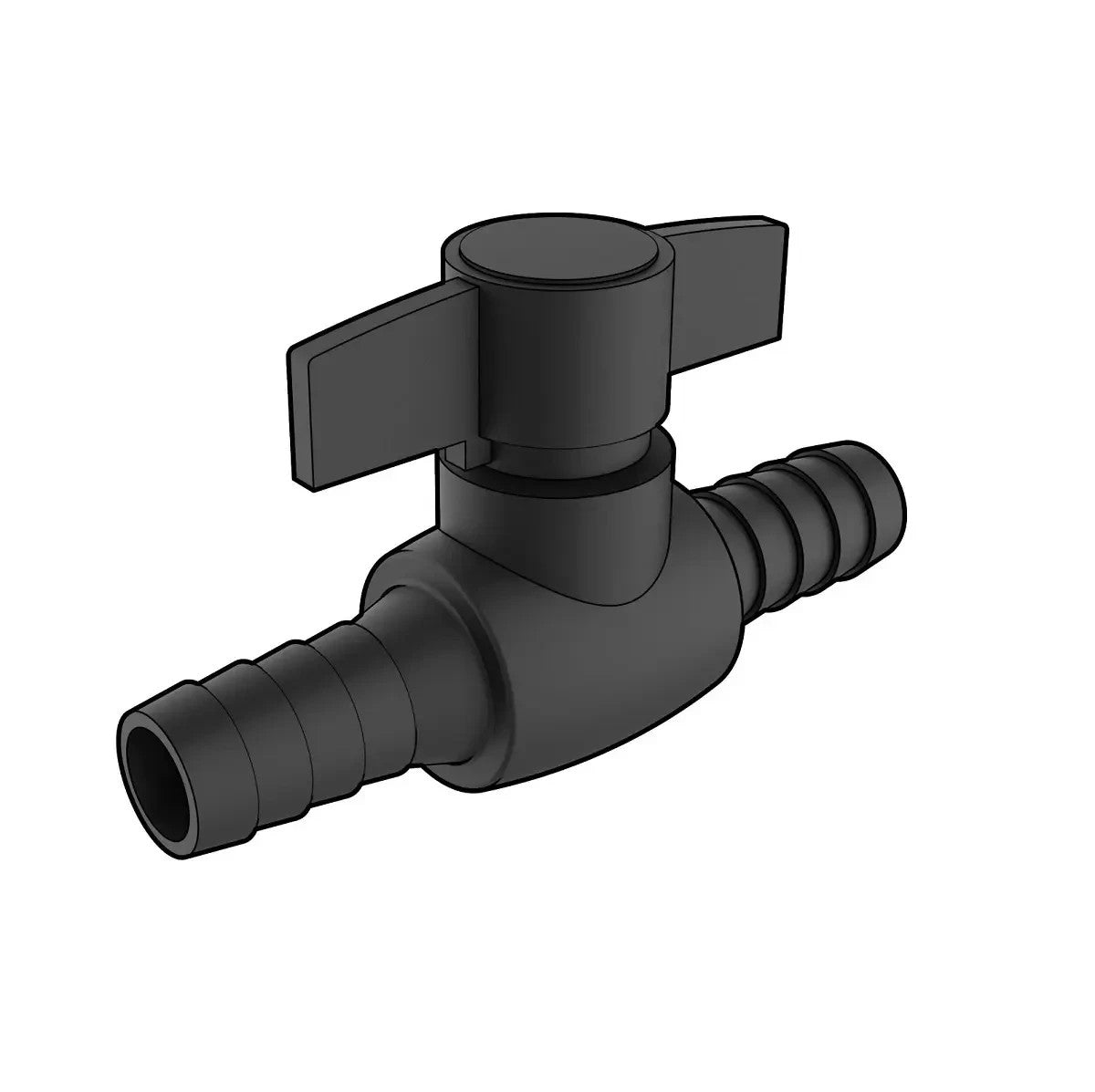

- M16 Drain port accepts drainage hose kit
- 16mm (5/8") barbs to accept common oil hose diameter (other diameter fittings also available)

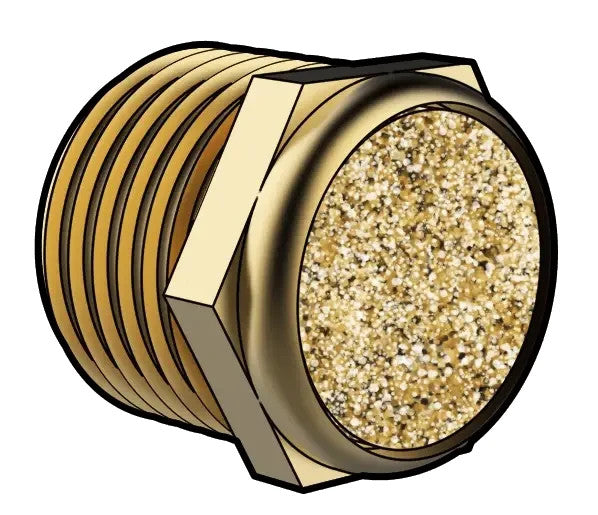

- Internal 40 micron bronze filter - removable, washable, replaceable. NB - high boost engines demand more frequent cleaning of the filter or use of the open mesh filter

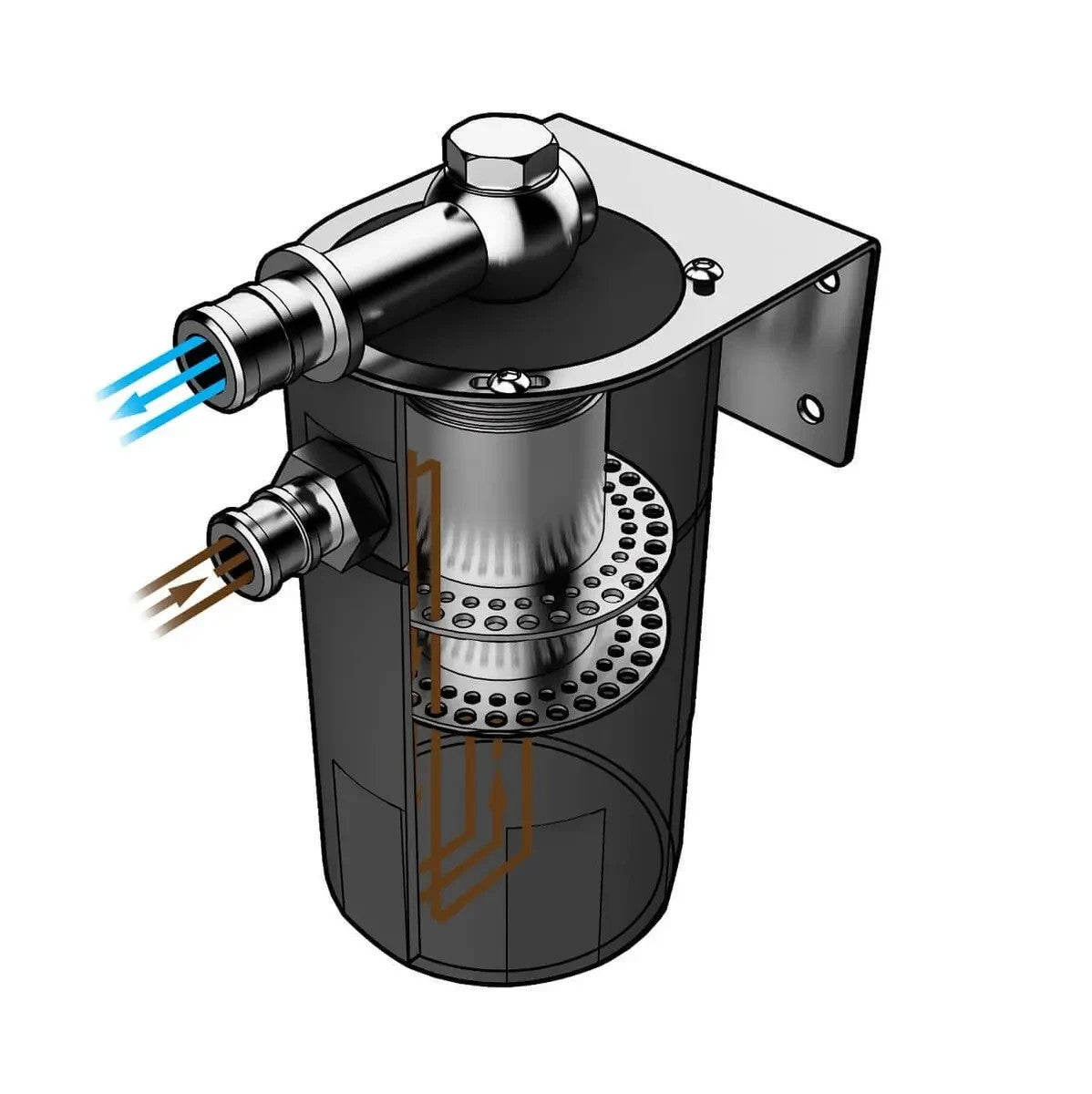

- Additional internal baffles to ensure maximum trap of waste oil particles
- 360 degree swivel top mounted banjo for fully adjustable pipe exit
- Base machined flats to facilitate easy removal of the reservoir for cleaning/flushing
- Push in lock fittings free from hose clamps
- Also available in a polished finish (ST1015)

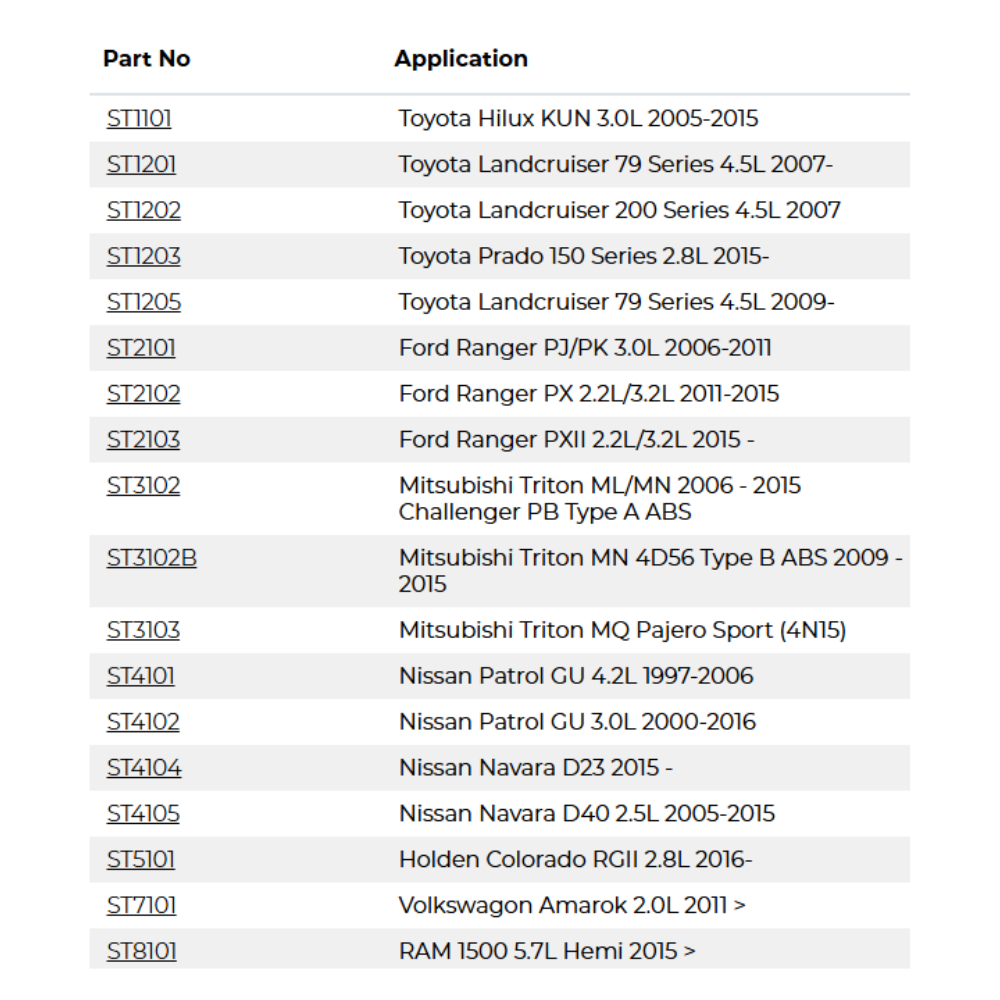

- Check our our vehicle specific fitting kit for a professional fit (sold separately)
