Description

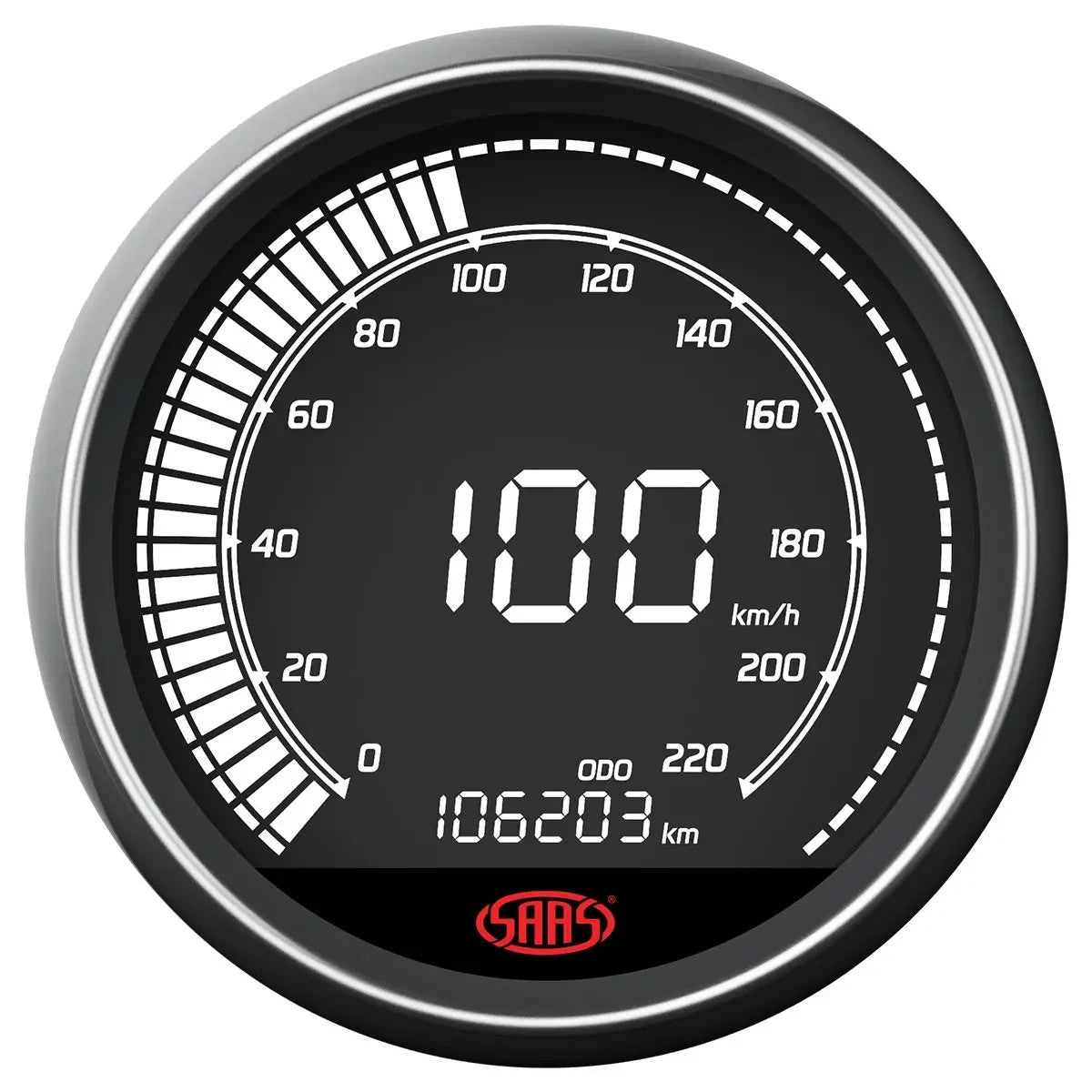

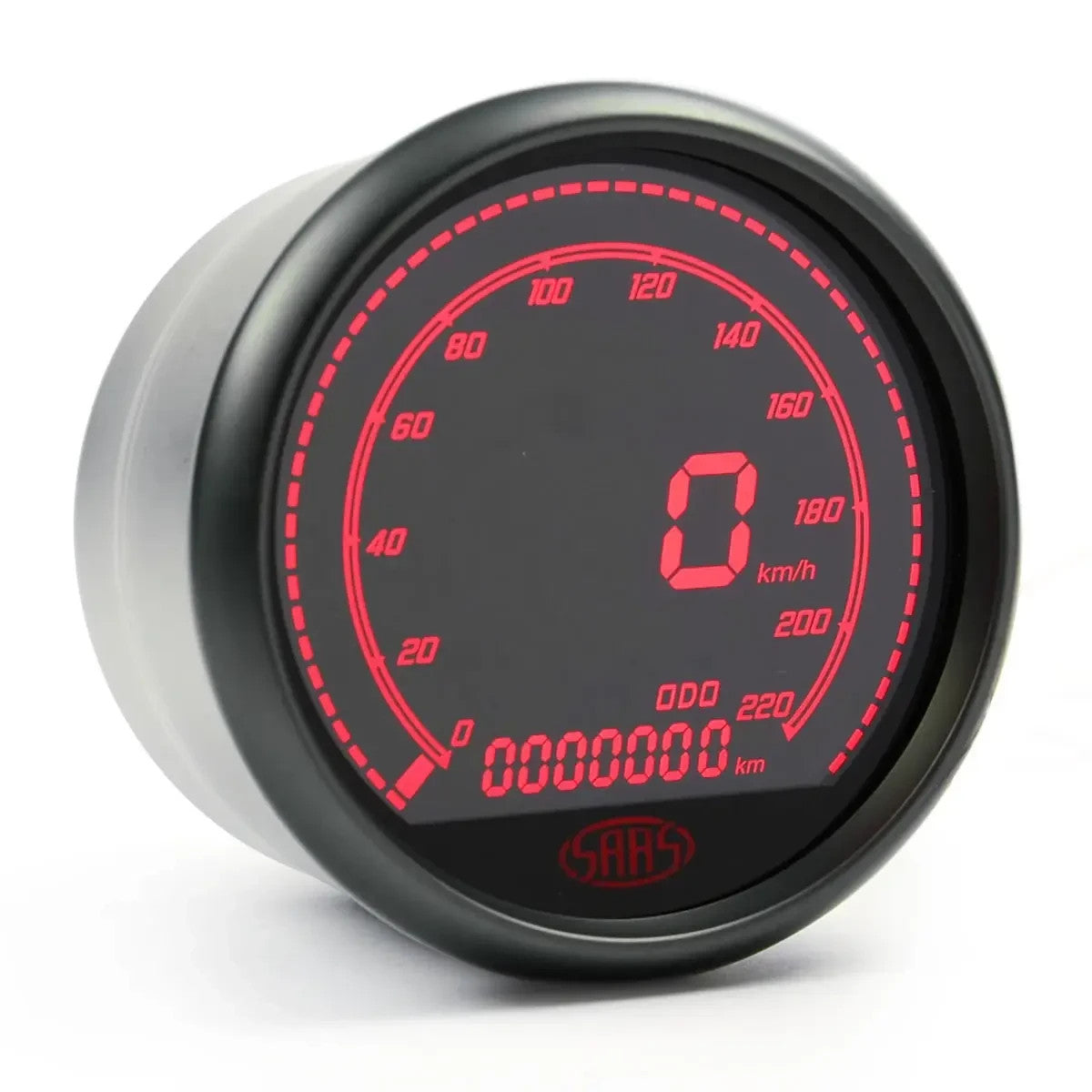

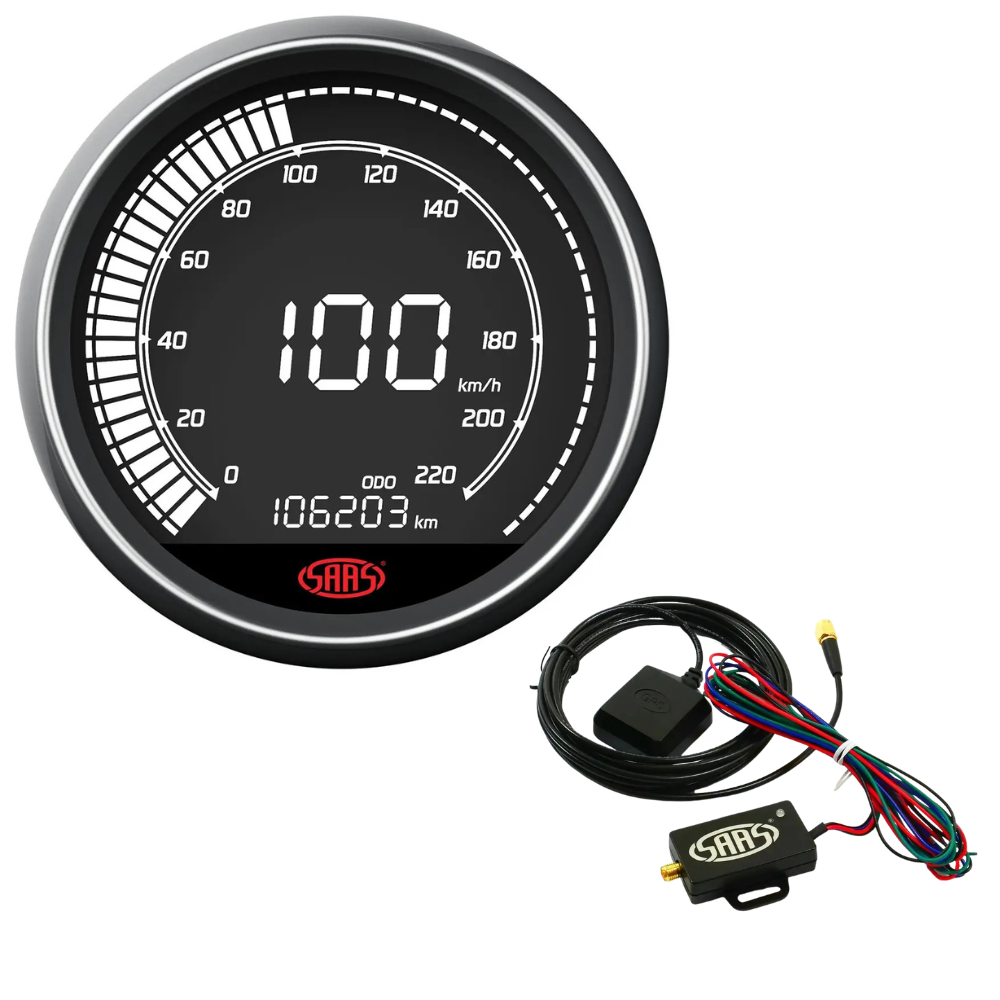

SAAS GPS Speedometer Speedo Muscle Digital Series 220 Kph (3 1/2") / 90mm Dash
Presenting the latest in SAAS Muscle Series Digital Gauges - our full featured 0-220 KPH Digital Speedometer designed for in-dash installation. The new for 2022 SAAS Muscle Digital Series gauges give you digital readings with the added advantage of dimmable backlighting. No moving components allows for a vibration proof environment making these gauges ideal for 4WD, offroad and performance applications.
Specifics:
- 80mm Body OD / 89mm Bezel OD
- Separate TRIP (A) and TRIP (B) Odometer
- Maximum (Peak) Speed Recall
- Built-In Adjustable Speed Alert
- Read Speed in either KPH or MPH
- Transfer your vehicle's original odometer reading onto the digital display
- Multi-Vehicle Pulse Rate Selector input that works with all electronic speed generators (optional parts may be required for cable driven speedometers).
- OLED Multifunction Display window shows all user functions and setup functions

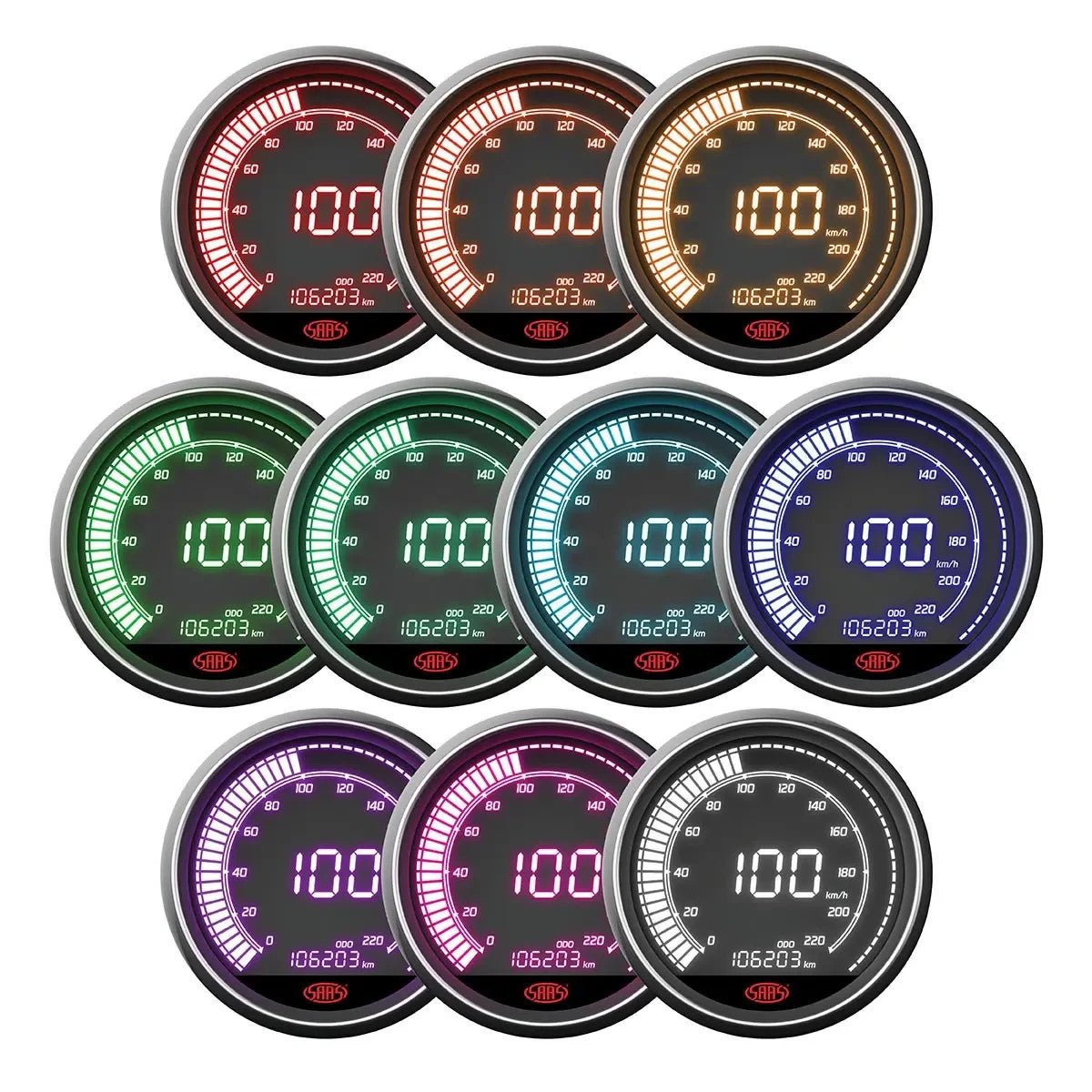

- Advanced 10 Colour LED Lighting with 5 levels of dimming for day and night mode (accessed via a remote switch)

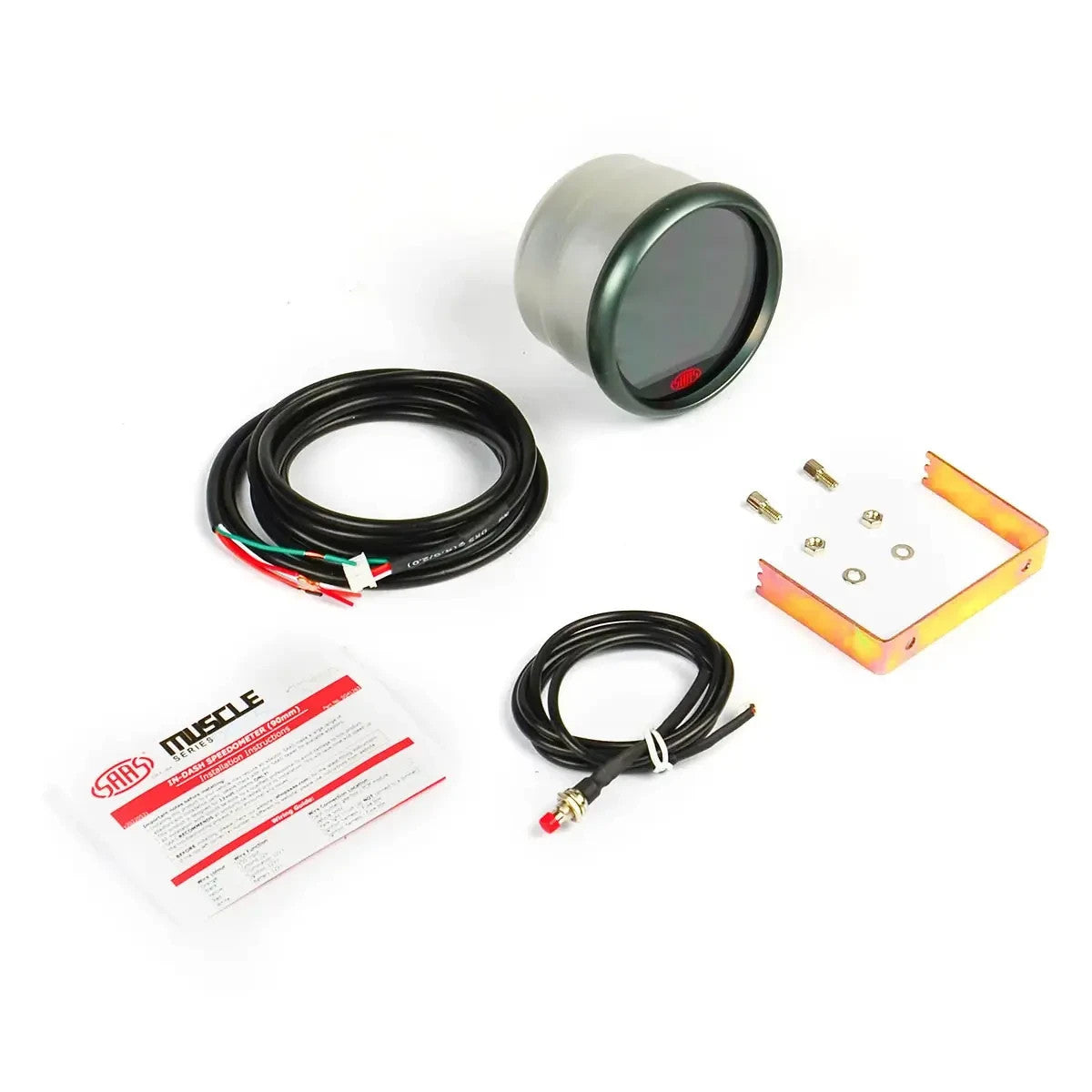

Includes:

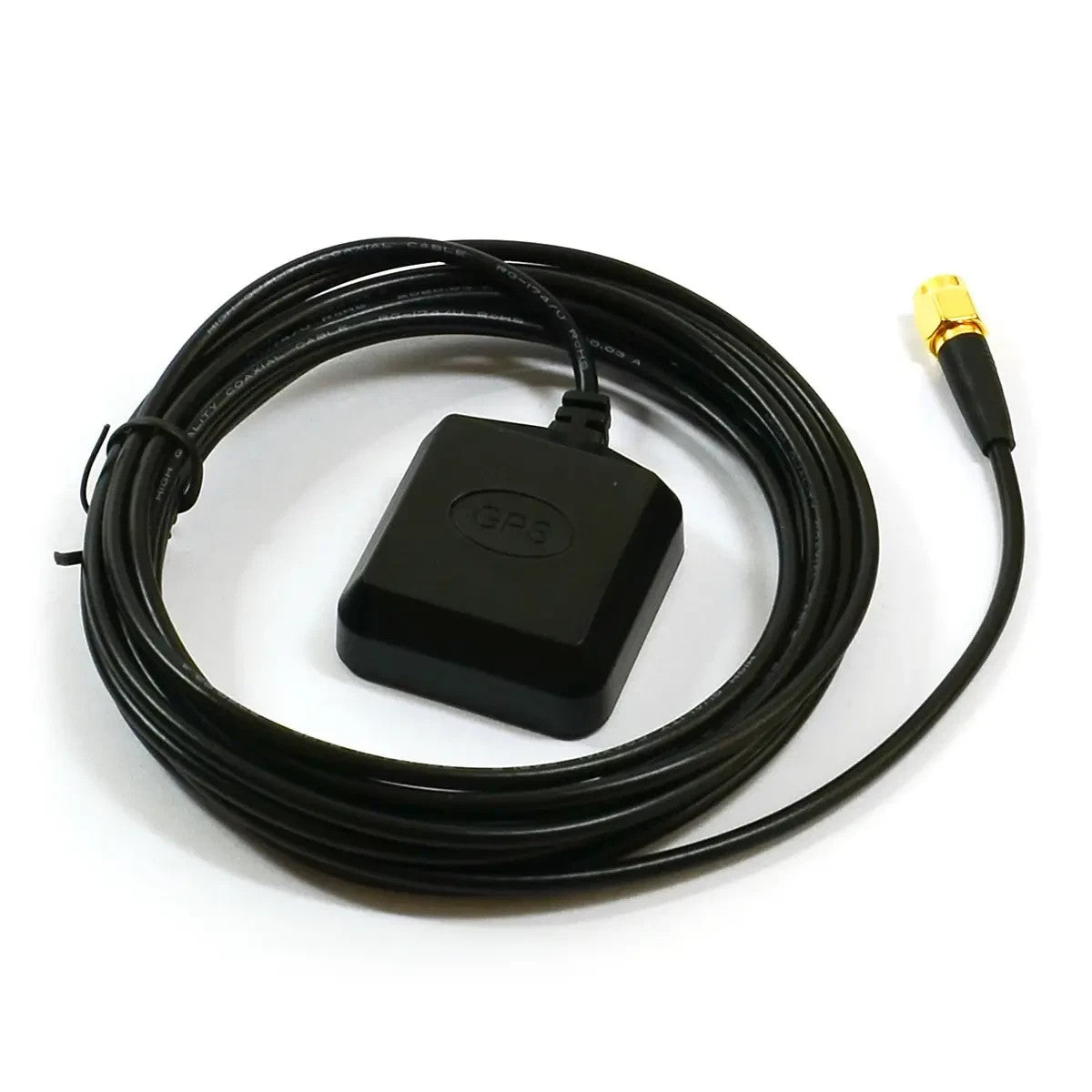

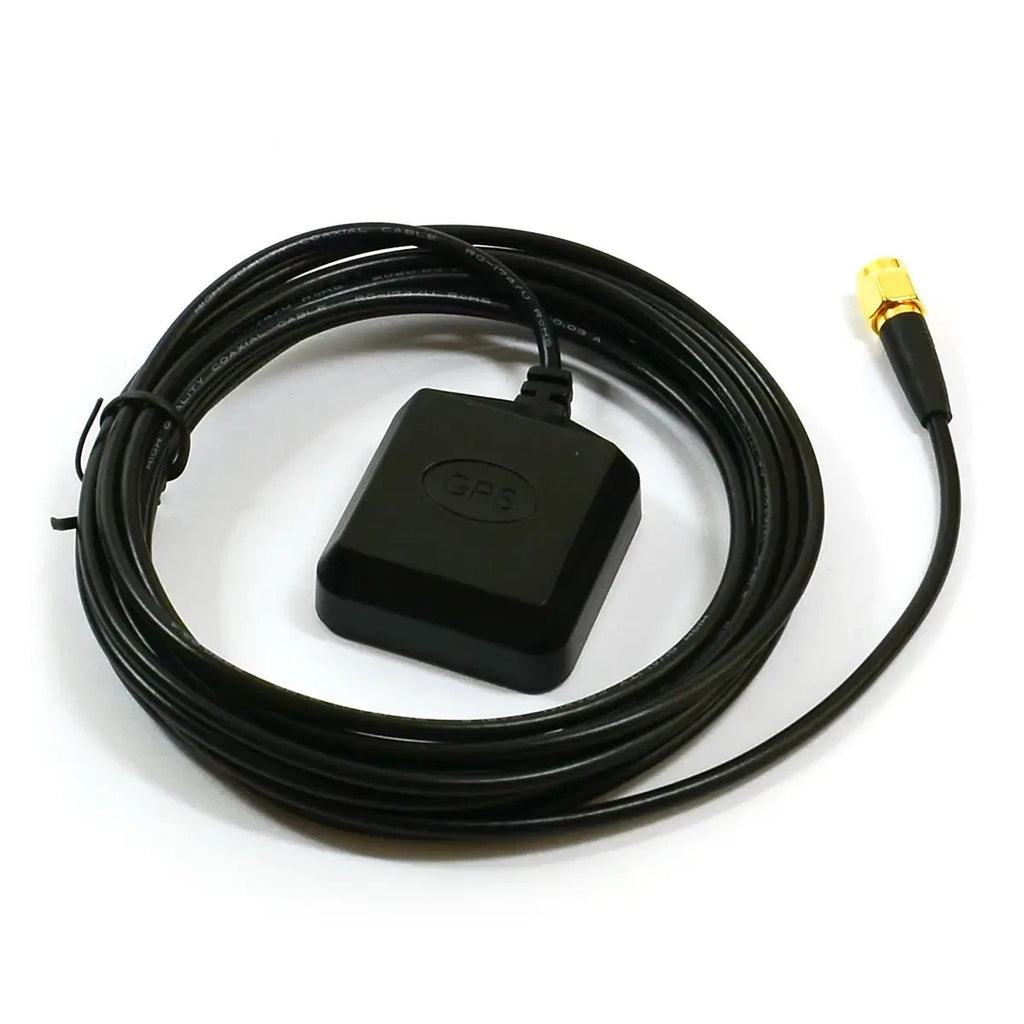

SG31650 Speedometer GPS Sensor and Antenna
Features:
- Direct match to our SAAS in-dash speedometers
- Super fast and easy install (when mated to SAAS Speedometers)
- High Accuracy with 0.2% deviation (cable drive speedos are typically 3-5%)
- Can mate to any Speedometer, Odometer or Tachograph
- Calculates 3 dimensional ground speed and provides a pulsed output with a high degree of accuracy
- Velocity < 0.06m/sec (~ 0.22 kph)
- Altitude to within 10m
- Horizontal to within 5m
- Anti GPS Drift technology
- Shockproof and circuit protected
- Pulse compensation for when driving through tunnels (5000 pulses per km)
- Low current draw
- Fast satellite acquisition time
- First time setup < 60sec
- Temporary power loss < 13 sec
- Loss of satellite lock < 2sec
Cable Assignment:
- RED: Power + DC8~32V (may require resistor in higher V installs)
- BLACK: Ground/Earth
- GREEN: Speed Pulse Signal +'ve output
- BLUE: Speed Pulse Signal -'ve output
