Description
GM LS Bottom End Gasket Kit Rear Main Sump Timing Cover LS1 LS2 LS3 Genuine
Seals the back and bottom of the engine in one hit. All the genuine GM gaskets for the rear of the block: rear main cover plate, sump gasket, timing cover gasket and seal, water pump gaskets, oil cooler gaskets and the LS oil galley plug. Suits all LS engines — the kit to grab when the engine's out for a cam swap, rebuild or oil leak fix, so the whole bottom end goes back together sealed like factory. Pairs with the VRS top-end kit for a complete engine reseal.
Manufacturer Part Number: LSBLOCKKIT

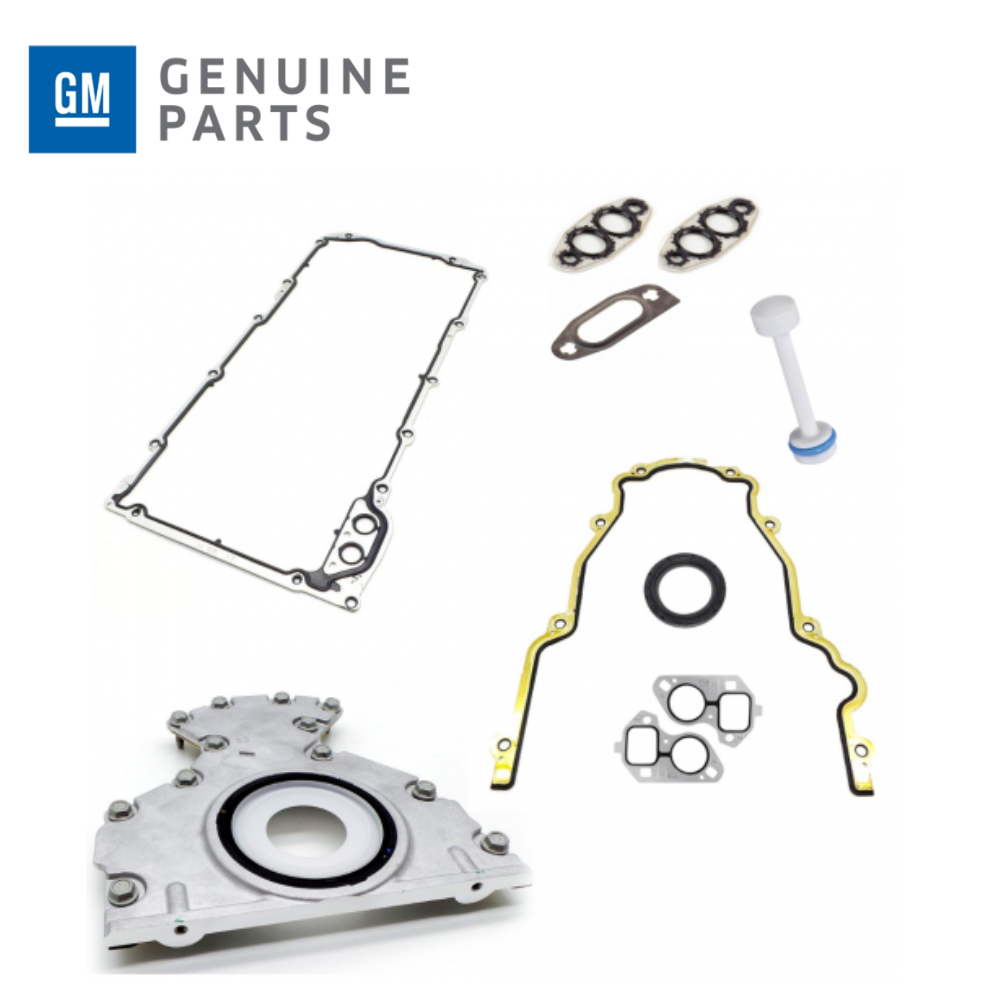

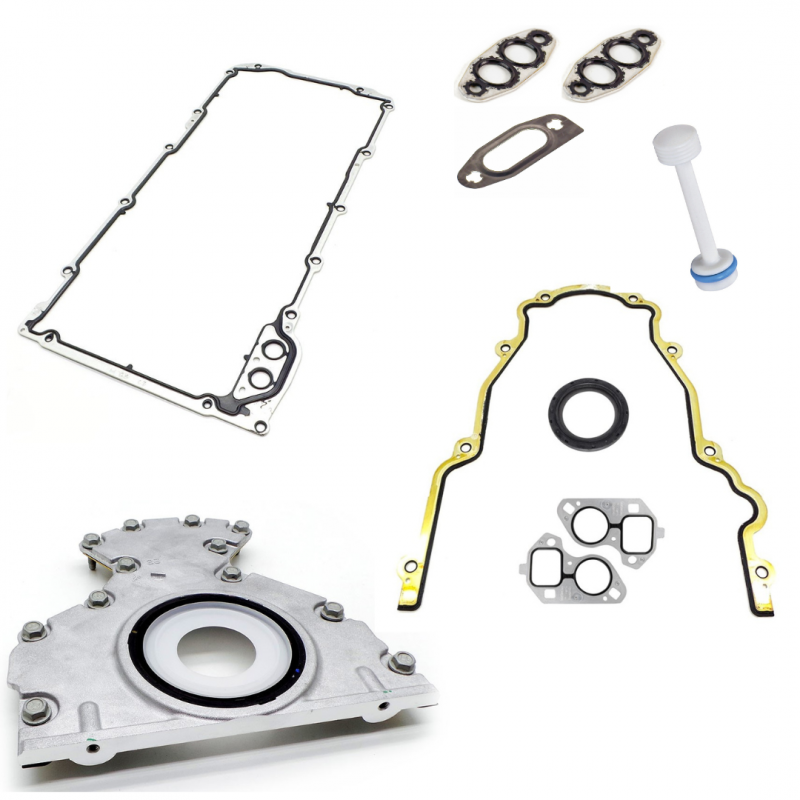

Kit complete with:
Sump/Oil Gasket (12612350)
Rear Main Plate (12639250)
Timing Cover Gasket (12633904)
Timing Cover Seal (12585673)
Water Pump Gaskets x2 (12630223)
Oil Cooler Block Off Gasket (12611384)
Engine Oil Cooler Gaskets (15203889)
LS Oil Galley Plug (12573460)
Suits:
Holden / HSV / Chev LS1 5.7L, LS2 6.0L, LS3 6.2L V8 Engines
