Description

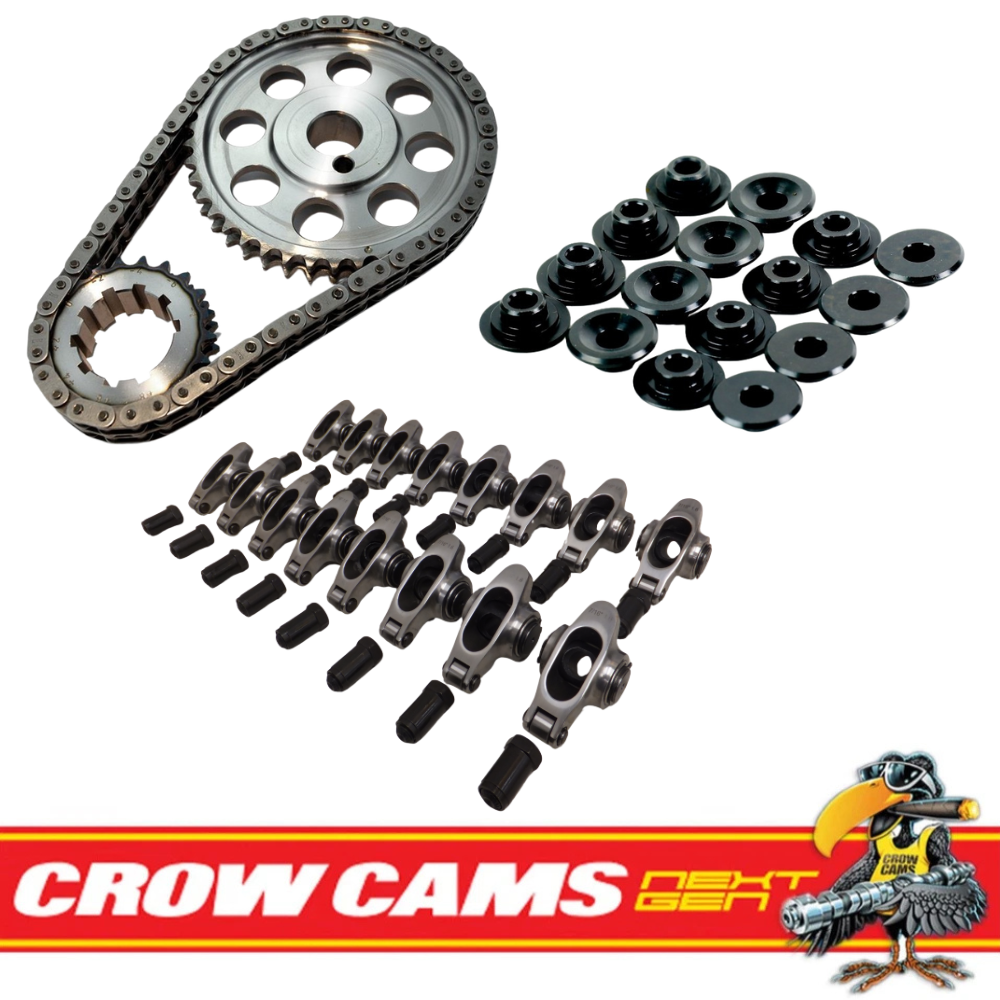

Crow Cams Roller Rockers + Retainers + Timing Chain Set For Ford Windsor V8 EFI
Kit Includes:

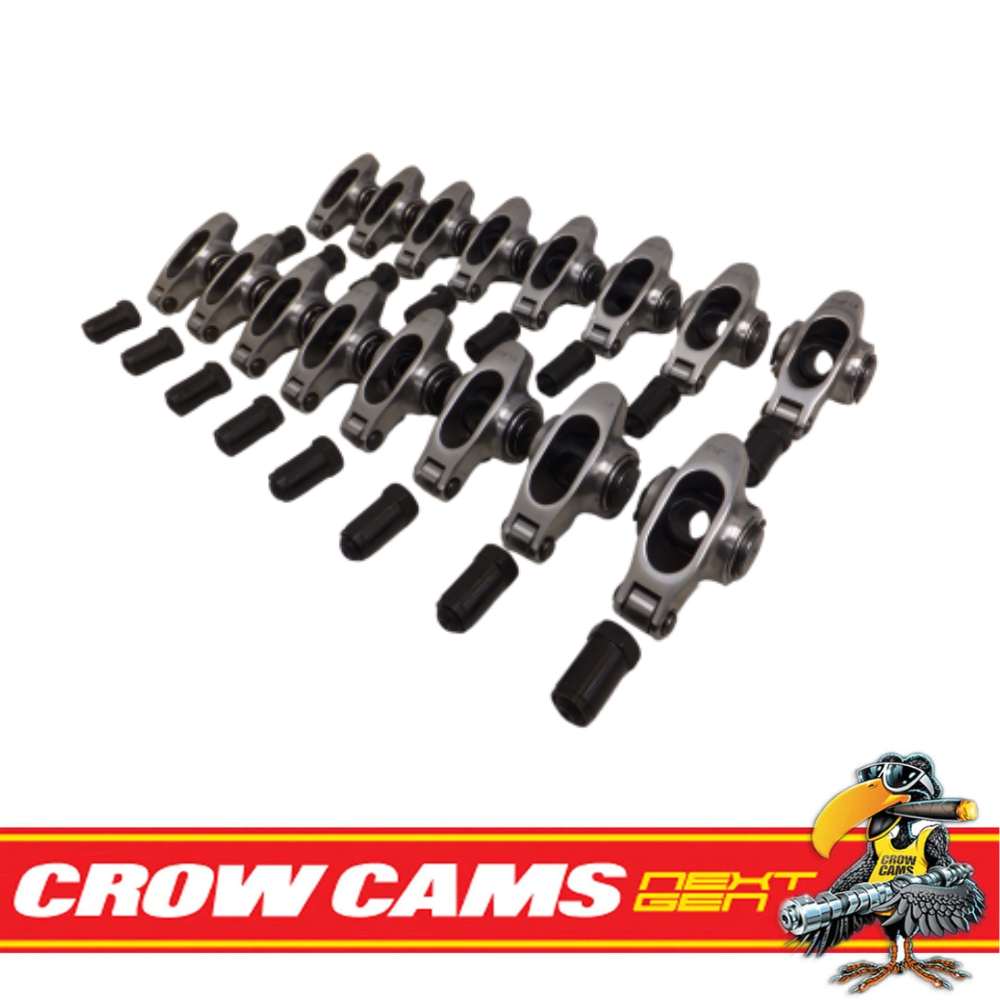

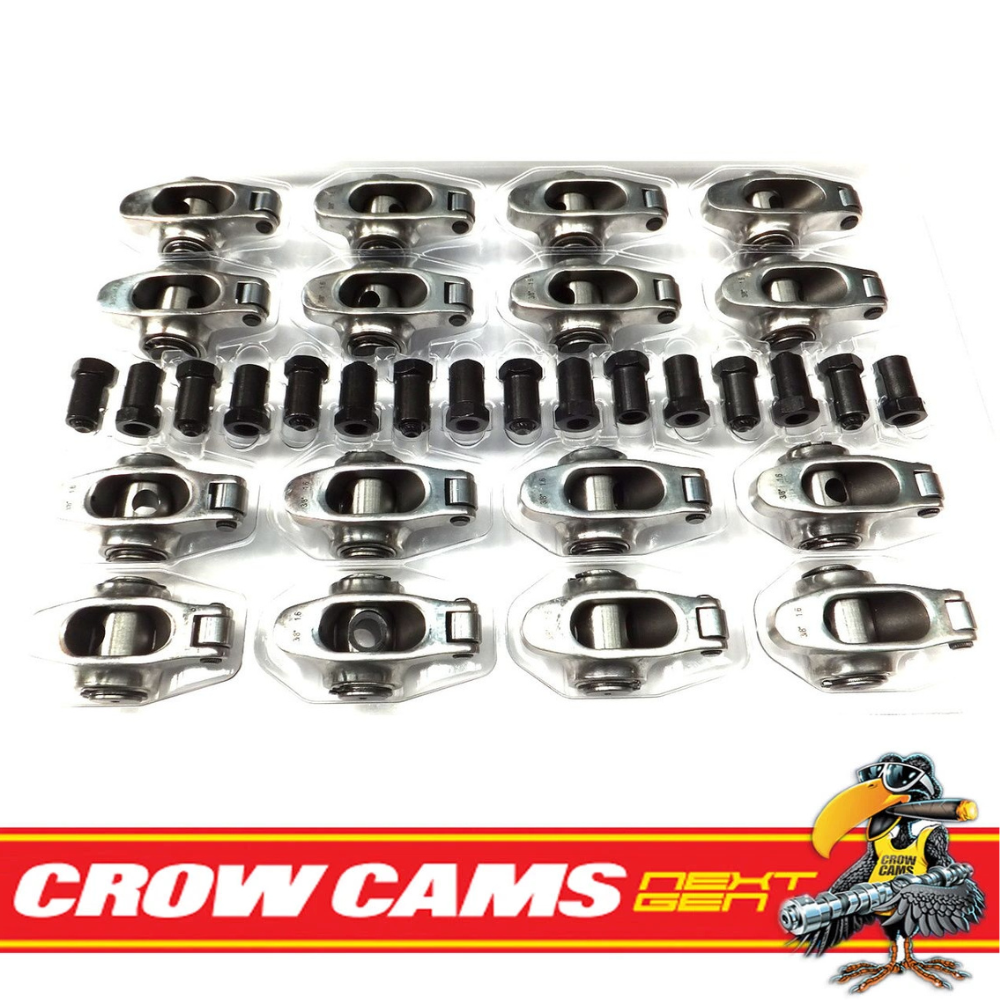

CRFW163 Roller Rockers:
- Set Of x16
- Rocker Arm Mounting Style: Stud
- Rocker Arm Ratio: 1.6
- Rocker Arm Style: Full roller
- Stud Size: 3/8"
- Rocker Arm Material: Stainless Steel
- Rocker Arm Nut Style: Polylock
- Part Number: CRFW163
- See fitting notes
Crow Cams new stainless steel stud type roller rockers offer virtually zero arm deflection for maximum valve lift and unrivalled resistance to arm breakage. The oversize rocker shafts allow for 7/16 studs to be used without comprising shaft strength. The larger shafts and needle roller bearings also offer greater load capacity for high valve springs pressures. Every set comes complete with poly locks for added value and simple, secure valve lash adjustments.
Fitting Notes:
- Requires studs and guide plates when fitting. Not suitable for solid roller applications.
- As these are stud mount rockers, heads will require machining to fit studs and guide plates.

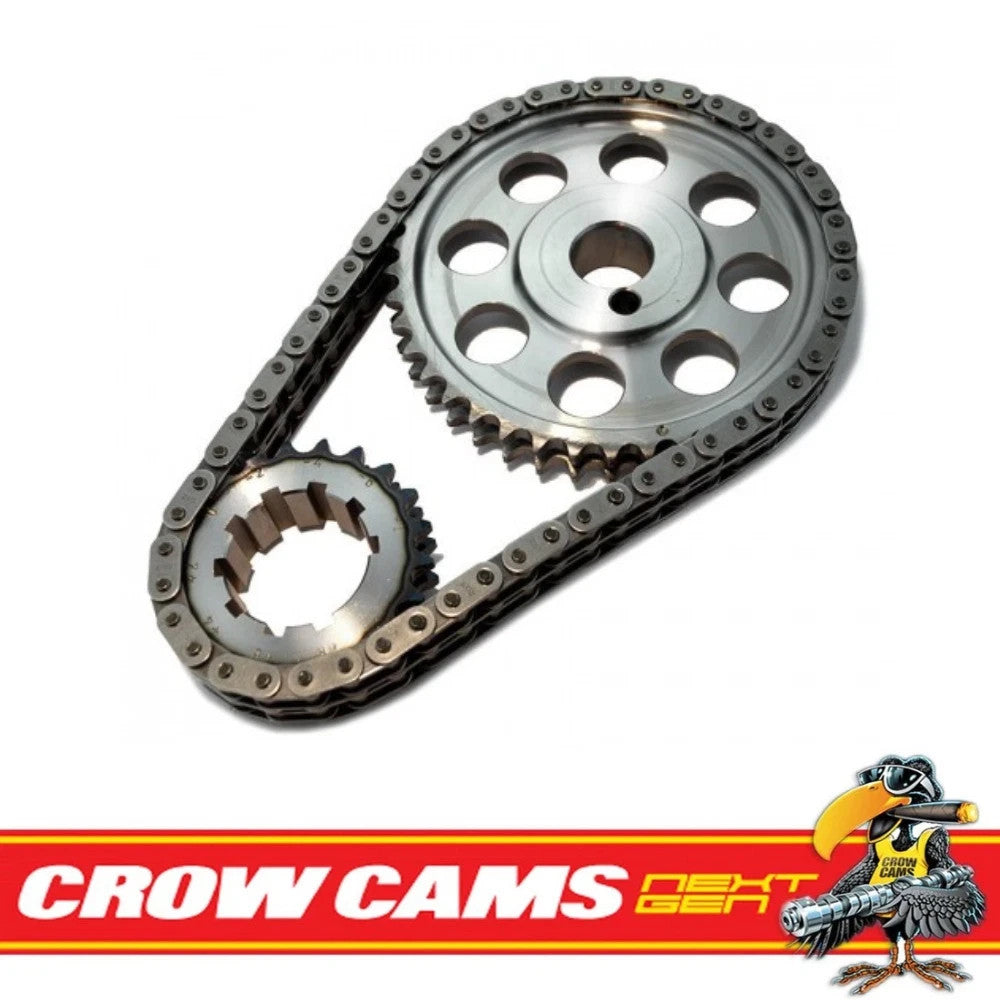

CS8302WEFI Timing Chain Set:
- Ford Windsor 302 timing chain set
- Double row
- Manufacturer Part Number: CS8302WEFI
- German IWIS Chain
- Double Row IWIS True Roller Chain
- Lower gear has 9 keyways for timing location

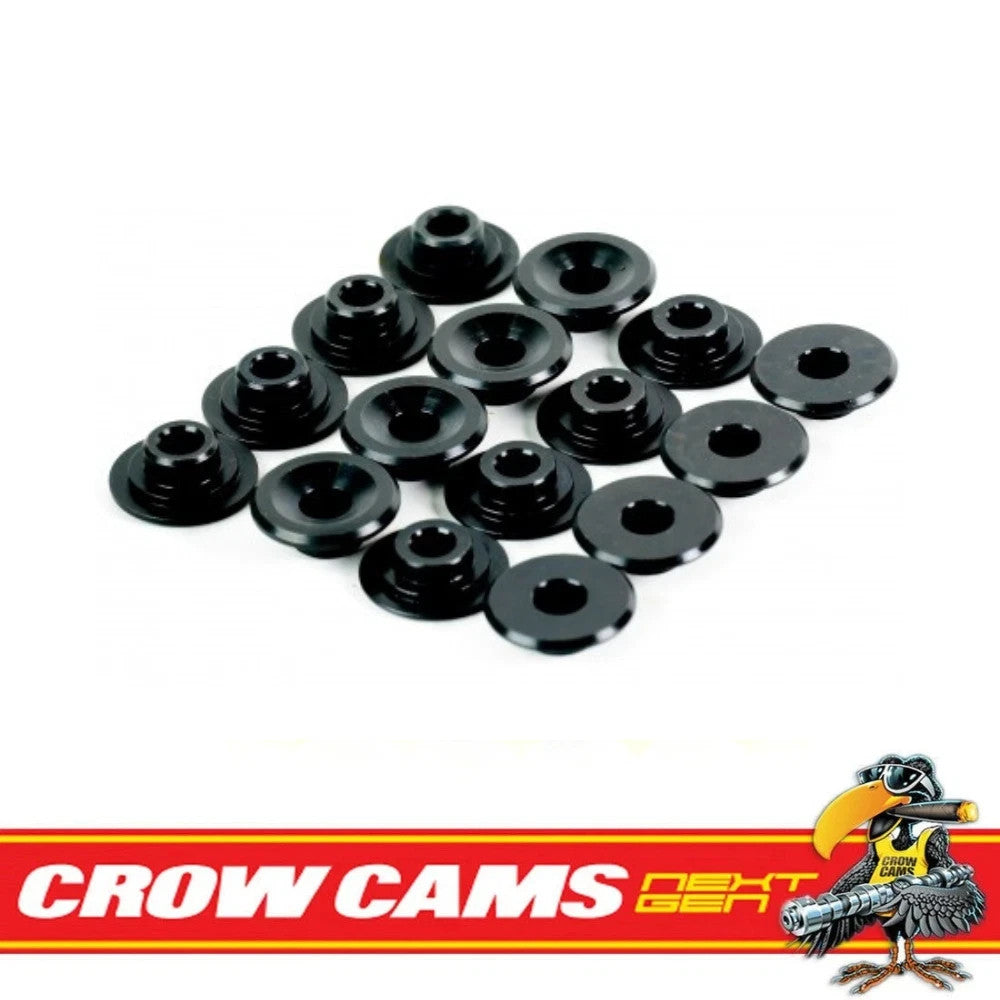

1111700-XR8 Retainers:
- Chrome moly performance retainers
- Set Of x16
- Part Number: 11700-XR8
- Used with Crow Cams 7739-16 / 7333-16 Valve Springs
- Part no 11700-XR8 includes two different retainers
- The retainer with the flat top is the inlet retainer
- The retainer with the large chamfer on the top face is a +0.100" retainer
- You must remove slow rotor from the exhaust valves and use this retainer to make up the height difference so the spring will be common on all valves.
- Before ordering this kit, it is important to check your installed height. Often we find variations in installed height that require a different combination of retainers to what is in this kit.
- In some cases, our customers have required all Standard height retainers or all +.100 retainers.
Suits:
Ford Windsor EFI Hydraulic Roller 5.0L 302 V8 EB EB ED EF EL AU AUII
