Description

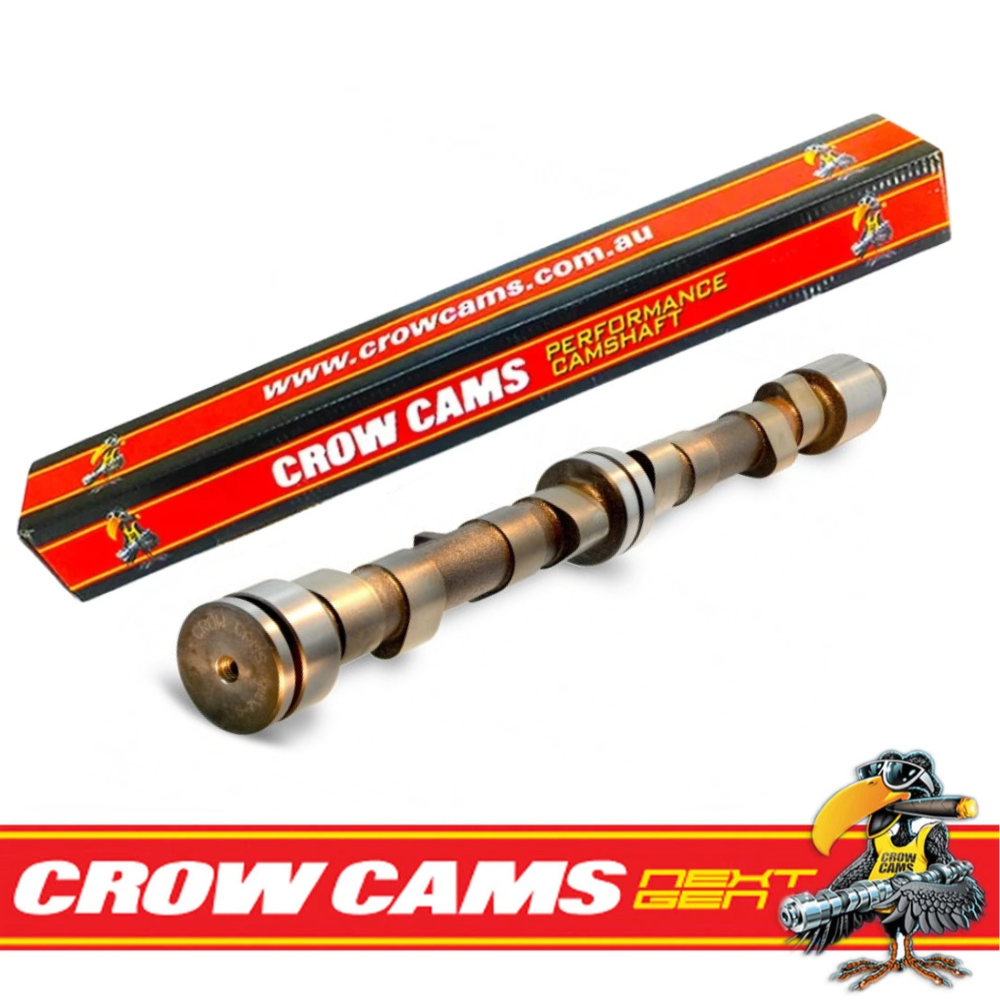

Crow Cams Performance Street Strip Camshaft For Ford Cortina Escort 4 Cyl 26661
- Performance street/strip cam
- Needs modified engine, comp, headers, carbie & ignition
- See fitting notes
| Part Number | 26661 |
| Camshaft Type | |
| RPM Range | 3000 – 7000 |
| Advertised Duration (IN / EX) | 280° / 290° |
| Duration @ .050" (IN / EX) | 233° (measured at 0.75")/ 242°(measured at 0.75") |
| Valve Lift, 1.5 Rocker (IN / EX) | .474" / .466" |
| Lobe Separation Angle | 112° |
| Valve Lash (measured hot)(IN / EX) | .011"/ .011" |
- Specification notes: This profile is read in the head. The valve timing is measured at the valve with no lash
Suits:
- Ford 4 Cyl 2000 Petrol Engine Ford Cortina, Escort, Pinto models
Fitting Notes:
- Must use performance springs
- Must use Performance Retainers
- Machining Required to fit these components
- Must use performance seal
- Check valve train geometry before ordering pushrods
- Pushrod Length varied in this model. Check length before ordering
- Spring height varies in models, check spring pressure before installation.
- Converter stall speed should be equal to or greater than the minimum RPM of the cam power range
- Crow Cams recommend purchasing 2x bottles of ZDDP additive with any flat tappet cam, one for the initial run in and one for the first oil change thereafter.
Returns:
Camshafts are test-fit only. Once a cam has been fitted, oiled, or the assembly lube disturbed, it is no longer resalable and cannot be returned. Please check the part number against your order before it goes anywhere near the block.
Supporting Components:
The supporting components specified above are required. Running the cam without them will affect performance and may damage the camshaft.
Tuning & Set-Up:
Check the tuning and set-up requirements for your application before ordering. Some engines require professional tuning, Carburettor or ignition timing adjustment. A change in idle quality, vacuum and drivability is a normal characteristic of a camshaft change — not a fault, and not grounds for return.
Break In:
Where break-in instructions are supplied with the camshaft they must be followed exactly. Incorrect break-in is the number one cause of lobe wear and is not covered under warranty. If instructions are not supplied with your camshaft, message us and we will send you a copy.
Warranty:
Warranty covers manufacturing defect only. Damage caused by incorrect installation, insufficient break-in, incorrect springs, wrong lifter preload or valve-to-piston contact is not covered. Warranty assessment requires the camshaft to be returned to the manufacturer for inspection.
Not sure about something? Message us before you order. We'd rather spend five minutes checking than have you pull an engine apart twice.
