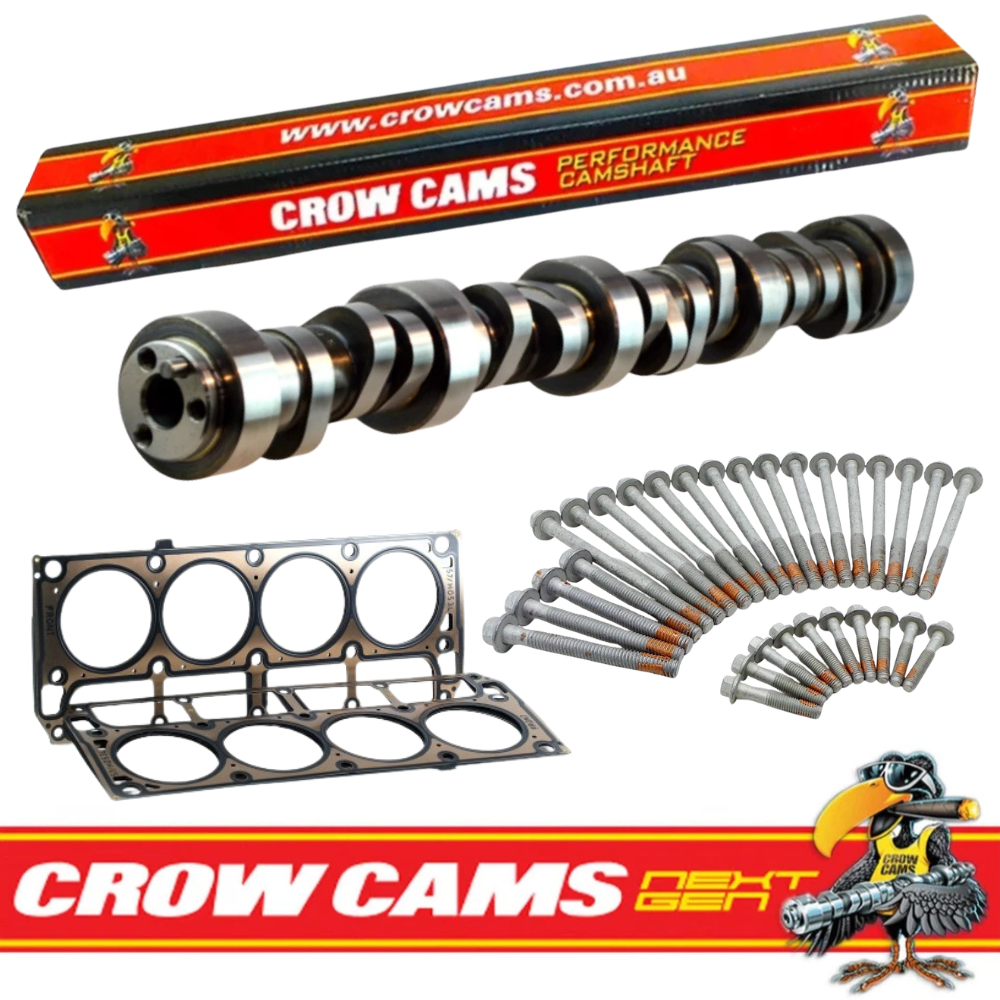

Crow Cams 871249 Camshaft GM Head Gaskets + 3 Length Head Bolts For LS1 5.7L V8
Kit Includes:

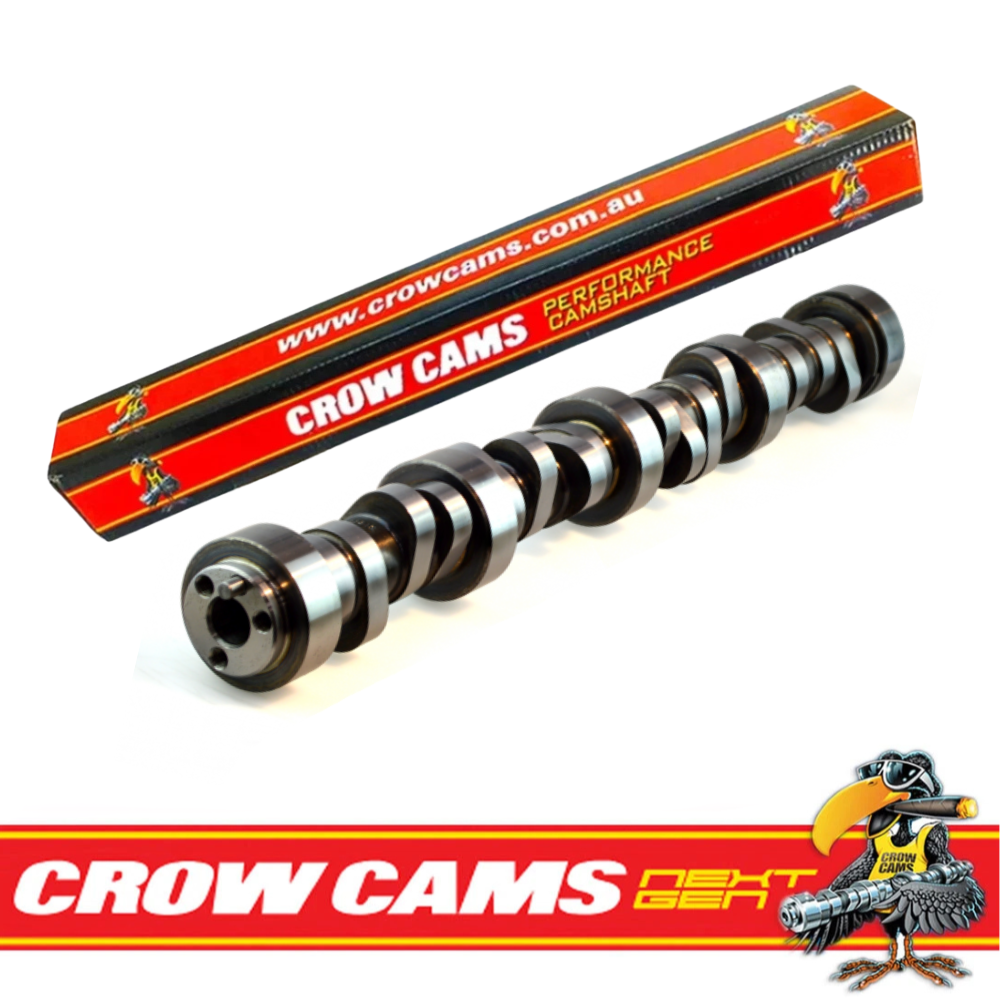

Crow Cams 871249 Camshaft:
Specs:
Head Type: Male Hex
Length: 110mm (4) & 155mm (16)
Thread: M11 X 2.00
Head Type: Male Hex
Length: 45mm (10)
Thread: M8 X 1.25
Quantity: 30 Pieces
- The most popular LS1 grind
- Tough street cam with big power and torque gains
- Aggressive idle
- Suits cathedral or rectangular heads
- May require stall converter (Check with tuner)
| Part Number | 871249 |
| Camshaft Type | Hydraulic Roller |
| RPM Range | 2400 – 6300 |
| Advertised Duration (IN / EX) | 275° / 282° |
| Duration @ .050" (IN / EX) | 226° / 232° |
| Valve Lift, 1.7 Rocker (IN / EX) | .608" / .602" |
| Lobe Separation Angle | 112° |
| Valve Lash (measured hot)(IN / EX) | HYD / HYD |

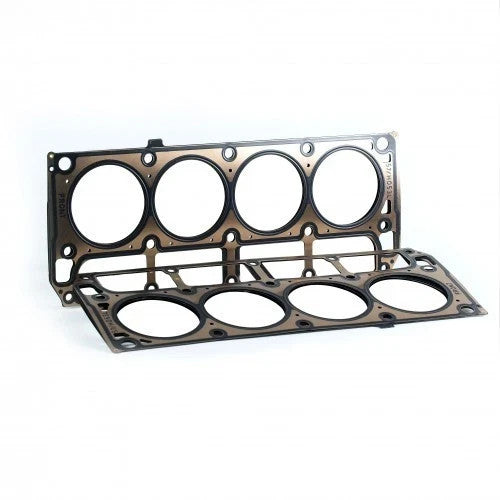

Genuine GM LS1 5.7ltr Head Gaskets:
Manufacturer Part Number: 12498544
- Genuine GM LS1 5.7ltr Head Gaskets
- Sold as a pair

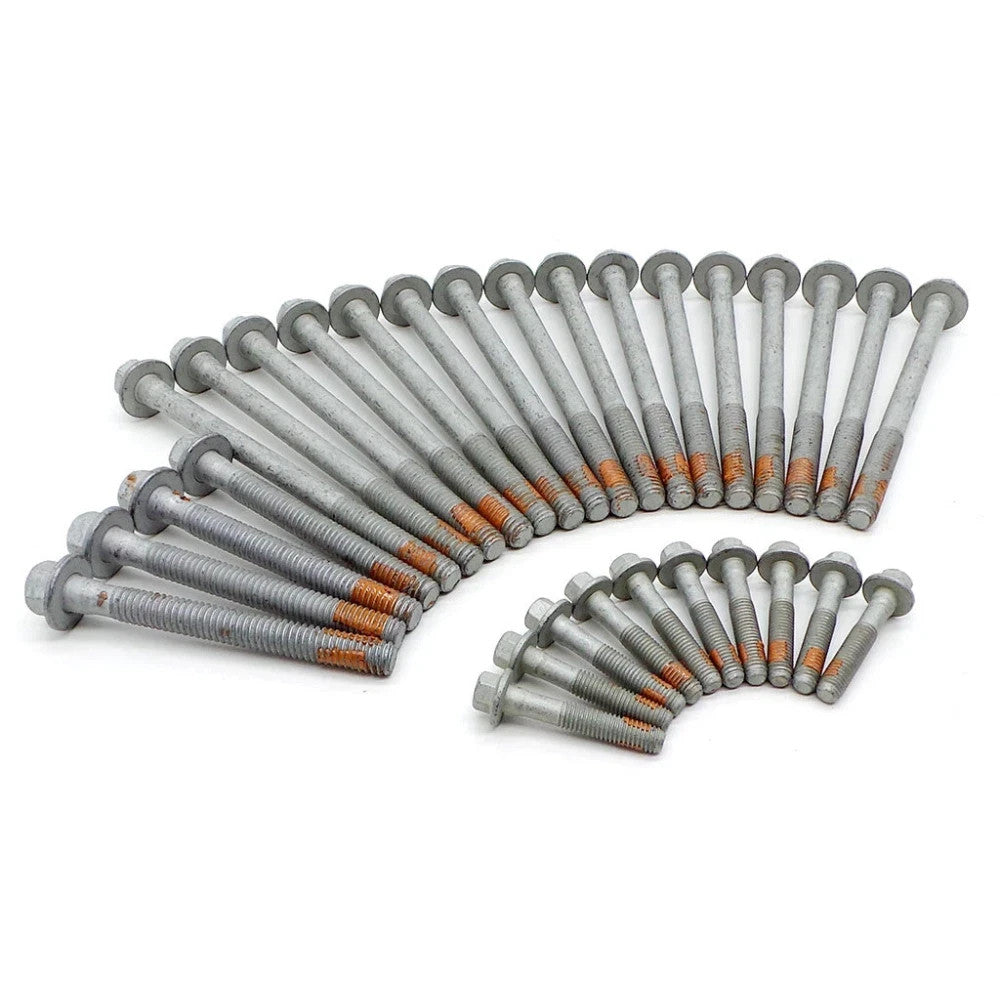

Genuine GM Head Bolts:
Head Type: Male Hex
Length: 110mm (4) & 155mm (16)
Thread: M11 X 2.00
Head Type: Male Hex
Length: 45mm (10)
Thread: M8 X 1.25
Quantity: 30 Pieces
Suits:
- Holden HSV 5.7L V8 Engines
- First design cylinder head pre 2004 with 3 length head bolts
- V8 GEN3 LS1 5.7L
- Holden Commodore VTII-VX-VY 05/1999-2003
- Holden Statesman WH WK 06/1999-2003
- Holden Ute VU VY12/2000-2003
- Holden Monaro V2 CV8 10/2001-2003
Note: Must have 1MA On Rear Of Cylinder Head
Fitting Notes:
- Must use performance springs.
- Must use performance retainers.
- Converter stall speed should be equal to or greater than the minimum rpm of the cam power range.
- May require stall converter (Check with tuner)
Returns:
Camshafts are test-fit only. Once a cam has been fitted, oiled, or the assembly lube disturbed, it is no longer resalable and cannot be returned. Please check the part number against your order before it goes anywhere near the block.
Supporting Components:
The supporting components specified above are required. Running the cam without them will affect performance and may damage the camshaft.
Tuning & Set-Up:
Check the tuning and set-up requirements for your application before ordering. Some engines require professional tuning, Carburettor or ignition timing adjustment. A change in idle quality, vacuum and drivability is a normal characteristic of a camshaft change — not a fault, and not grounds for return.
Break In:
Where break-in instructions are supplied with the camshaft they must be followed exactly. Incorrect break-in is the number one cause of lobe wear and is not covered under warranty. If instructions are not supplied with your camshaft, message us and we will send you a copy.
Warranty:
Warranty covers manufacturing defect only. Damage caused by incorrect installation, insufficient break-in, incorrect springs, wrong lifter preload or valve-to-piston contact is not covered. Warranty assessment requires the camshaft to be returned to the manufacturer for inspection.
Not sure about something? Message us before you order. We'd rather spend five minutes checking than have you pull an engine apart twice.
