Description
SSH3201 Mitsubishi Triton MQ-MR Pajero Sport QE-QF 2.4L Silicone Intercooler Cold Side 2015 on
Our 5 Ply Silicone intercooler hoses are the ideal replacement/upgrade for factory or OE style rubber hoses and come supplied with our dual bead stainless hose clamps

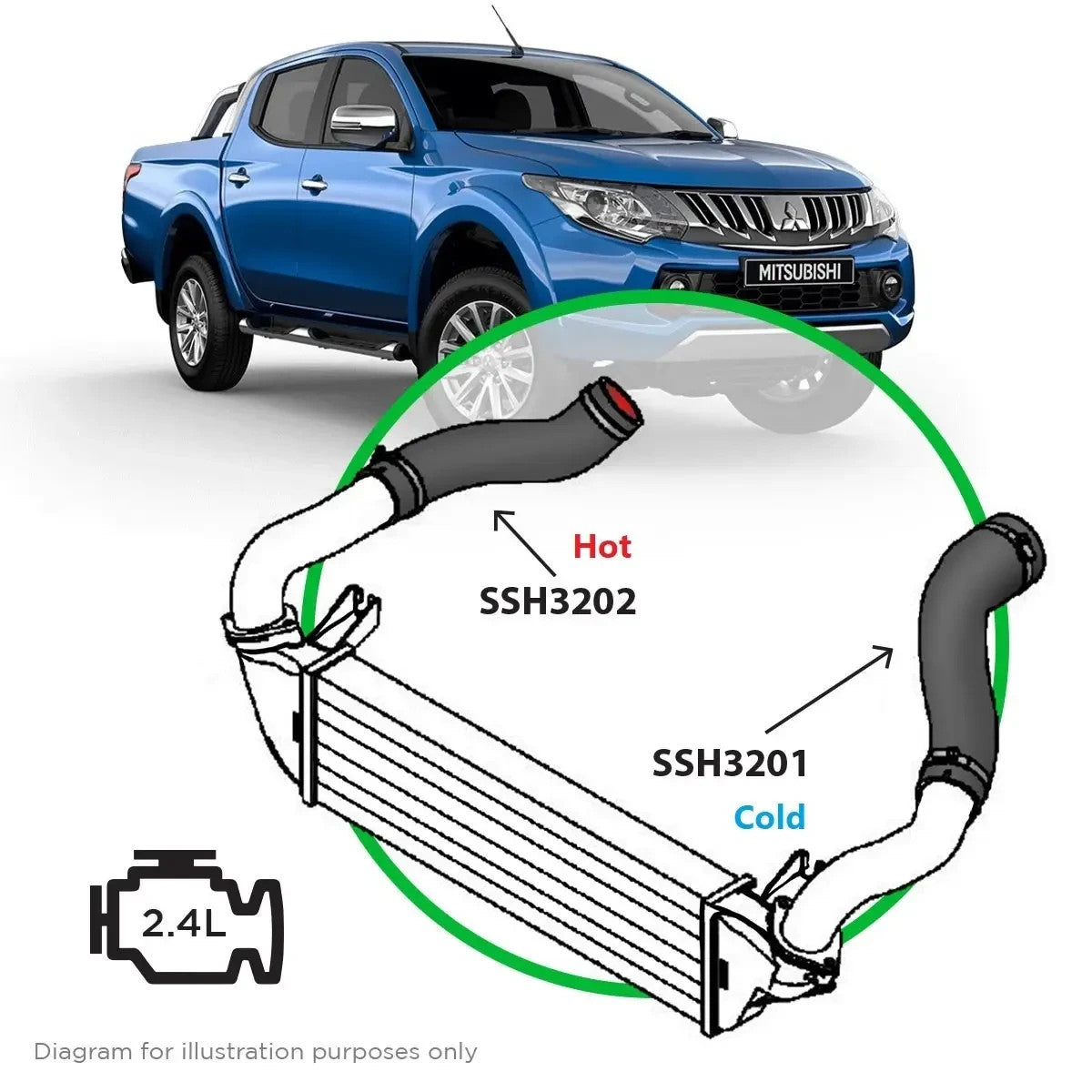

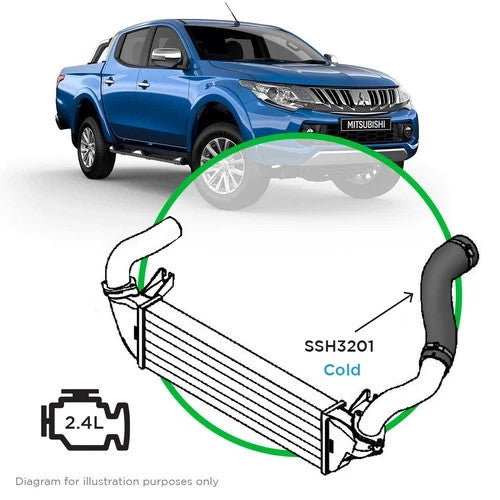

The SAAS SSH3201 is designed to replace the factory intercooler to throttle body cold pipe return (refer to layout diagram). Some trimming of length may be required on Pajero Sport QF.
The hose also features our new Stainless Dual Bead clamps which provide greater clamping pressure whilst mitigating the risk of cutting into your hose. Don’t be caught out with a split rubber hose roadside – upgrade to SAAS Silicone hoses today.
FVMQ Oil Resistance: FVMQ Fluorosilicones offer the highest level of oil resistance amongst the most common elastomers and are a popular solution within the aviation industry
Features:
Our 5 Ply Silicone intercooler hoses are the ideal replacement/upgrade for factory or OE style rubber hoses and come supplied with our dual bead stainless hose clamps
The SAAS SSH3201 is designed to replace the factory intercooler to throttle body cold pipe return (refer to layout diagram). Some trimming of length may be required on Pajero Sport QF.
The hose also features our new Stainless Dual Bead clamps which provide greater clamping pressure whilst mitigating the risk of cutting into your hose. Don’t be caught out with a split rubber hose roadside – upgrade to SAAS Silicone hoses today.
FVMQ Oil Resistance: FVMQ Fluorosilicones offer the highest level of oil resistance amongst the most common elastomers and are a popular solution within the aviation industry
Features:

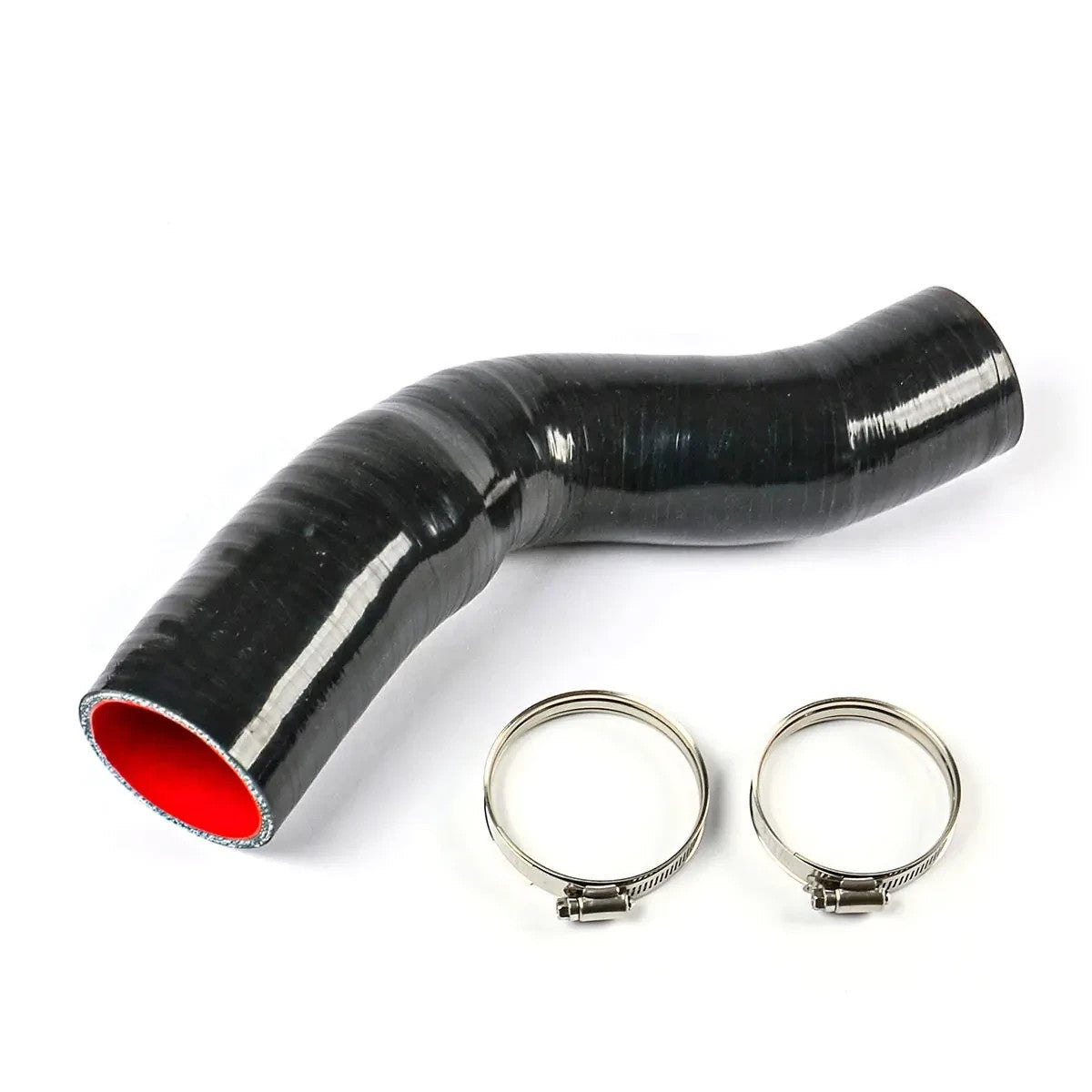

- Smooth Form 5 Ply polyester reinforced silicone
- ID 1: 59mm
- ID 2: 67mm
- 6mm wall thickness
- Red FMVQ Fluorosilicone lining providing greater resistance to oil mist and EGR by-products (see note)
- Stable operating temp from -50°C to +200°C
- 4:1 burst pressures at safe working loads
- Stainless Dual Bead Hose Clamps included
- Designed to be used with Factory intercooler
Suits:
- 2.4L
- 4N15 2.4L Turbo Diesel
- Mitsubishi Triton MQ-MR 2015 on
- Mitsubishi Pajero QE 2015 - 2019 2.4L
- Mitsubishi Pajero QF 2019 on 2.4L
