Description

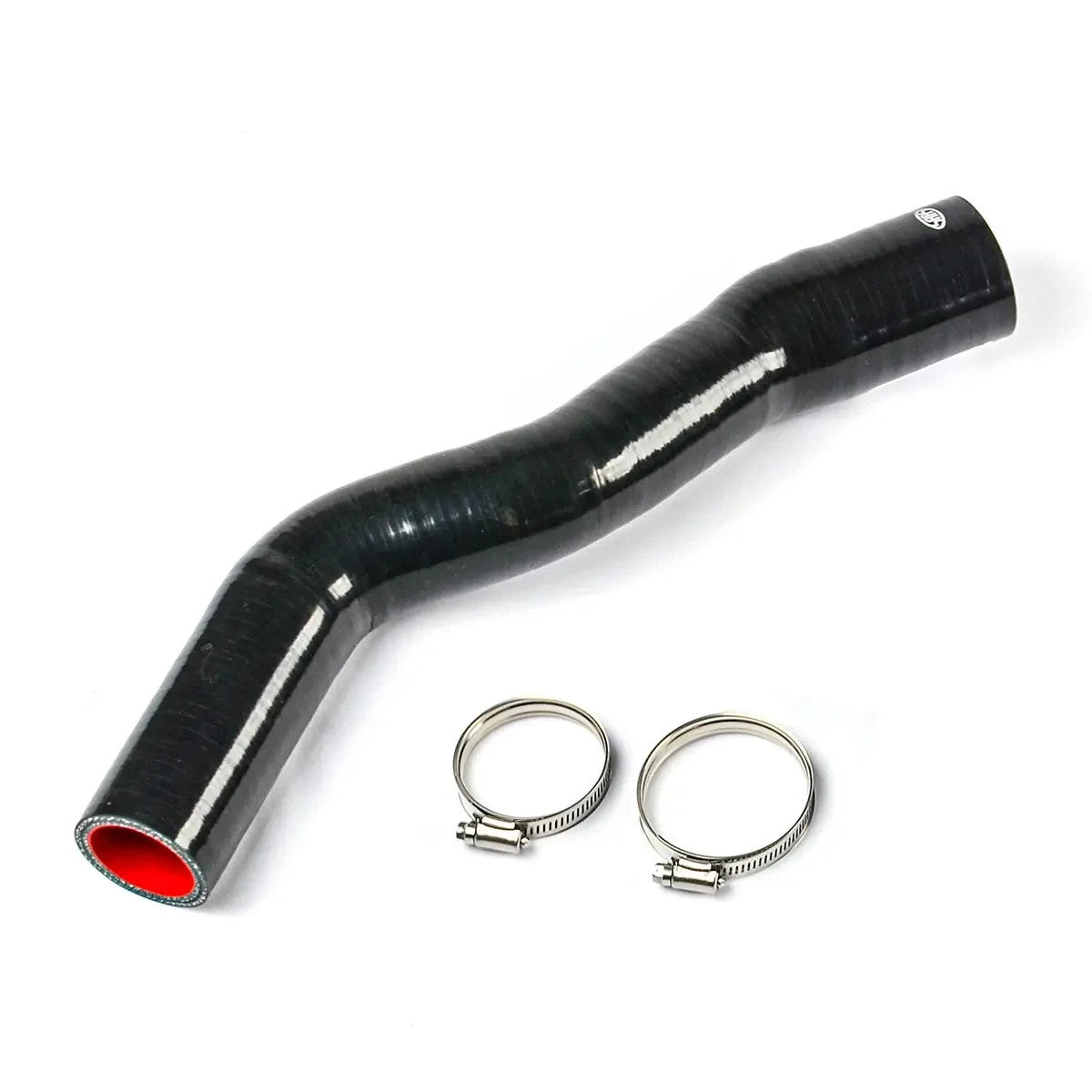

SSH3102 Mitsubishi Triton 2.5L 3.2L ML-MN Silicone Turbo to Intercooler Hot Pipe
Our 5 Ply Silicone intercooler hoses are the ideal replacement/upgrade for factory or OE style rubber hoses and come supplied with our dual bead stainless hose clamps

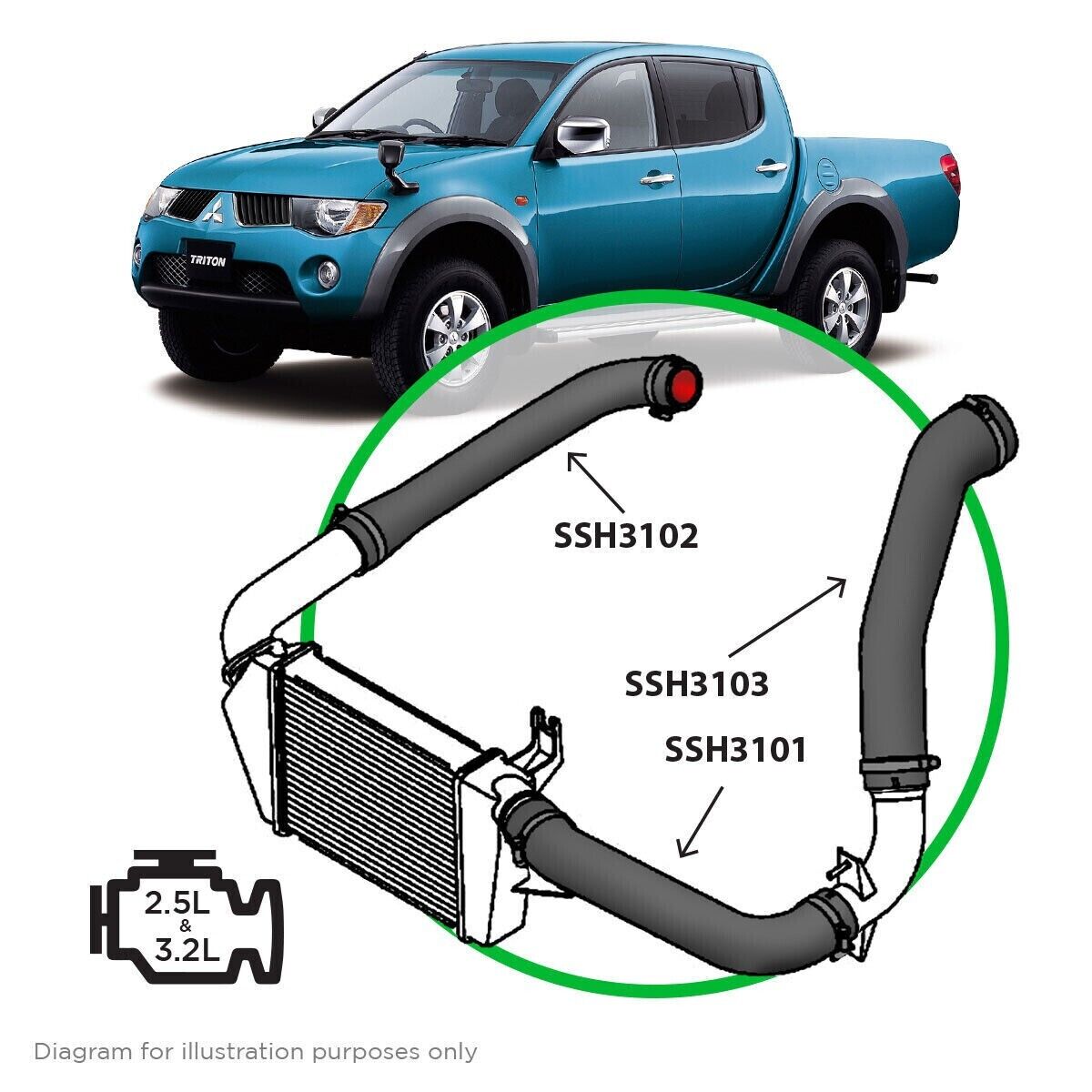

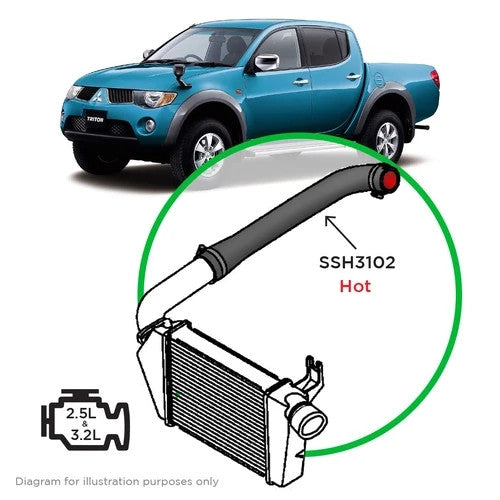

The SAAS SSH3102 is designed to replace the factory turbo to intercooler hot side pipe (refer to layout diagram).
The hose also features our new Stainless Dual Bead clamps which provide greater clamping pressure whilst mitigating the risk of cutting into your hose. Don't be caught out with a split rubber hose roadside upgrade to SAAS Silicone hoses today.
FVMQ Oil Resistance: FVMQ Fluorosilicones offer the highest level of oil resistance amongst the most common elastomers and are a popular solution within the aviation industry
Features:
Our 5 Ply Silicone intercooler hoses are the ideal replacement/upgrade for factory or OE style rubber hoses and come supplied with our dual bead stainless hose clamps
The SAAS SSH3102 is designed to replace the factory turbo to intercooler hot side pipe (refer to layout diagram).
The hose also features our new Stainless Dual Bead clamps which provide greater clamping pressure whilst mitigating the risk of cutting into your hose. Don't be caught out with a split rubber hose roadside upgrade to SAAS Silicone hoses today.
FVMQ Oil Resistance: FVMQ Fluorosilicones offer the highest level of oil resistance amongst the most common elastomers and are a popular solution within the aviation industry
Features:
- Smooth Form 5 Ply polyester reinforced silicone
- 6mm wall thickness
- Red FMVQ Fluorosilicone lining providing greater resistance to oil mist and EGR by-products (see note)
- Stable operating temp from -50°C to +200°C
- 4:1 burst pressures at safe working loads
- Stainless Dual Bead Hose Clamps included
- Designed to be used with Factory intercooler
Suits:
EXCLUDES 4WD ML 4M41 with TF035(HL) turbo
- 4WD Model with Variable Vane turbo IHI VT16/VT17
EXCLUDES 4WD ML 4M41 with TF035(HL) turbo
- 2.5L and 3.2L
- 4D56 2.5L Turbo Diesel
- 4M41 3.2L Turbo Diesel
- Mitsubishi Triton ML 2006 - 2009
- Mitsubishi Triton MN 2009 - 2015
- Mitsubishi Challenger PB PC 2.5L
