ARP LS Head Bolt Kit For Holden Statesman WH WK V8 Gen 3 LS1 5.7L Up to 2004

SKU: 134-3609
Price:
$580.00 AUD
Stock:
In stock

Description

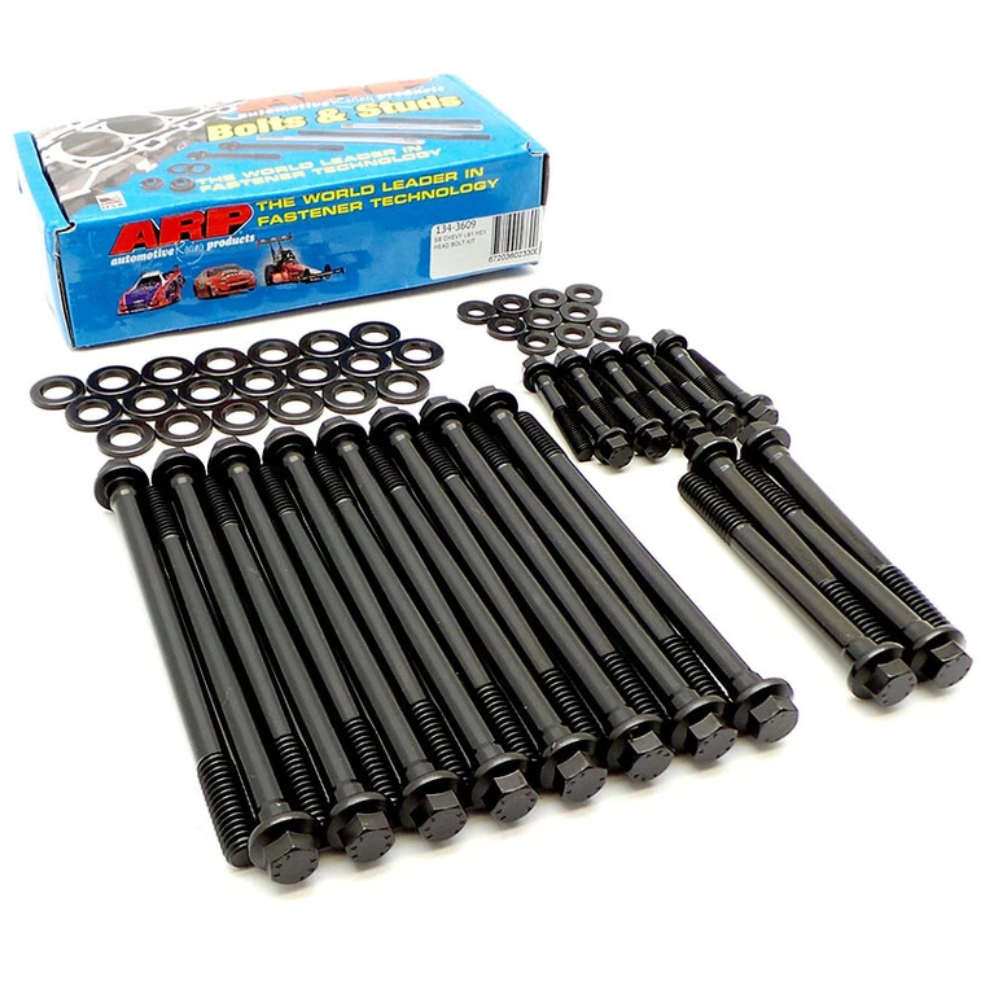

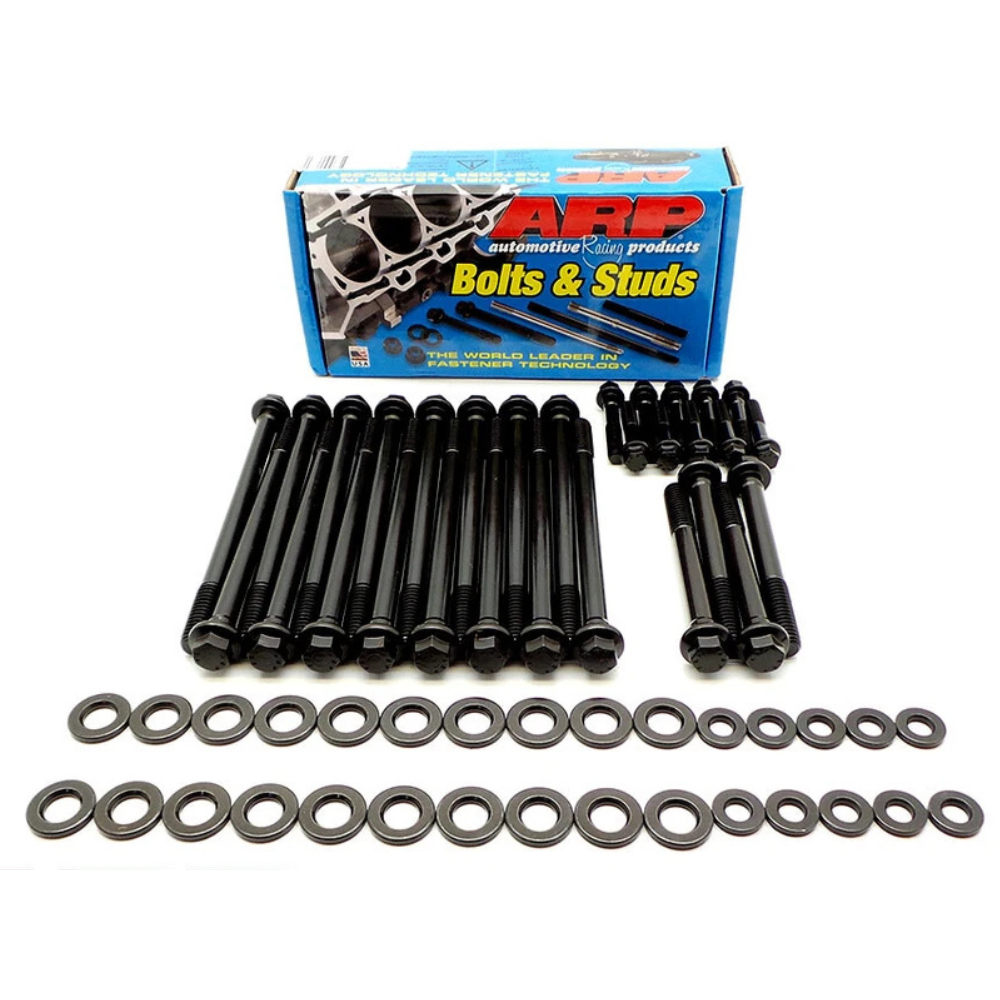

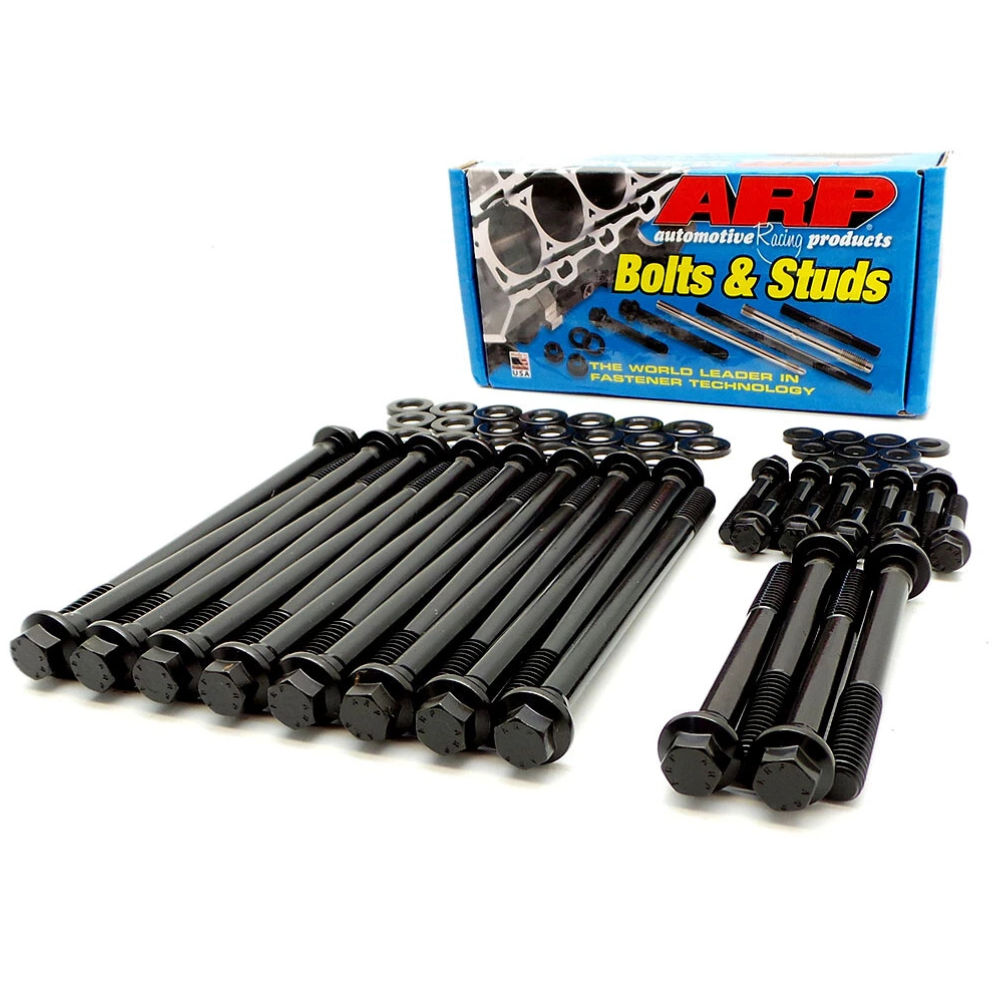

ARP LS Head Bolt Kit For Holden Statesman WH WK V8 Gen 3 LS1 5.7L Up to 2004

Suits Early LS engines with two different length main head bolts (including the small bolts it will have three different lengths)

Specs:
  • Material: 8740 CHROME MOLY
  • Socket Size: 10mm & 13mm HEX
  • Washers: INCLUDED
  • Set Quantity: 30
Replaces GM Part # 11588291, 12560745 & 12558840

Special Note:
Must have 1MA on rear of cylinder heads

Important Note:
Follow Holden's recommended torque sequence and tighten bolts to specifications

Suits:
  • First design cylinder head pre 2004
  • V8 GEN3 LS1 5.7L
Holden Commodore VTII-VX-VY 05/1999-2003
Holden Statesman WH WK  06/1999-2003
Holden Ute VU VY12/2000-2003
Holden Monaro V2 CV8 10/2001-2003
